Schneider Electric CONEXT XW Power DIST Panel 1-POLE 250A 160VDC (No AC Circuit Breakers)

MSRP: $1,388.00
— You save $404.01

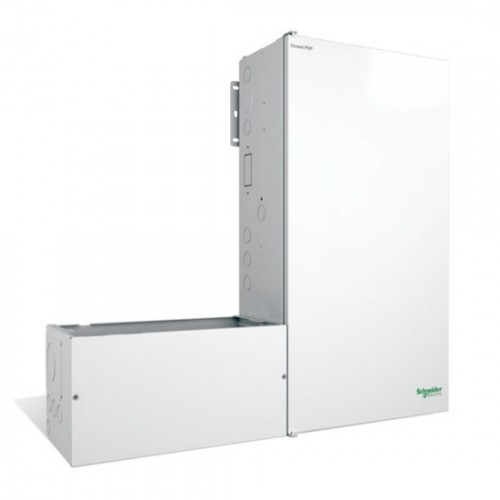

The XW Power Distribution Panels (XW PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple XW series inverter/chargers and Conext MPPT Solar Charge Controllers with a single battery bank. The XW PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW series inverter/charger. With space to add wiring and breakers, a single XW PDP and Mini PDP supports one XW series inverter/charger, a diesel generator and either an MPPT 100 600, MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW PDP and Mini PDP support single-phase, split-phase or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger.

XW Power Distribution Panels help you save significant time and money during installation when compared to custom solutions. A mounting bracket and XW Conduit Box are also supplied with each XW PDP and Mini PDP.

The XW Power Distribution Panel (PDP) provides an easy to install DC and AC power distribution cabinet compatible with the Conext XW series inverters. The PDP can be used for managing power distribution for up to three XW inverters, MPPT Charge Controllers, the battery, and a generator.


The PDP is designed for easy installation and flexibility:

Includes a main 250 A DC breaker for the battery
Available with or without AC breakers for AC input, Bypass, and AC Out (load)
Breaker expansion positions on DC side for solar charge controllers and additional battery disconnects/breakers and AC side for additional inverters, generator or AC coupled PV inverter
Compatible with up to three XW inverters
Provision for mounting surge arresters e.g. Square D SDSA1175, Square D SDSA3650
Extremely flexible Arctic Ultraflex BlueTM wiring for direct connection to the XW inverter as described in the specifications
Split phase, single phase, and three phase applications
Mount on either side of the XW inverter, multiple conduit knockouts and a field reversable door
Mounts flush beside Conext 600V MPPT Charge Controllers. Includes mounting provisions for two MPPT 60 150 Charge Controllers on the side
Saves installation time with factory installed, ready to connect wiring
Includes a Conduit Box and mounting plate for seamless integration with XW inverters


  • Manufacturer: Schneider Electric
    Product Line: Power Distribution Panel
    Model ID: 865-1014-01
