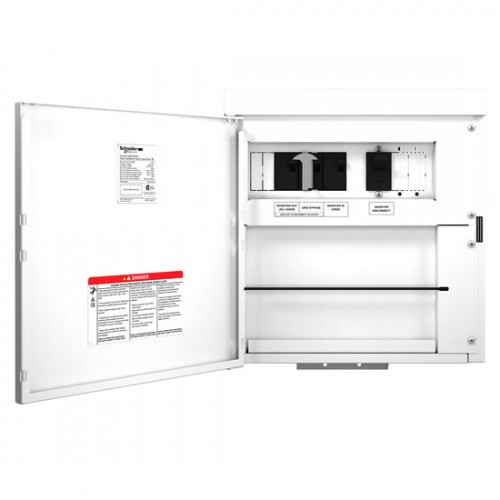

Schneider Electric 865-1013-01 Conext XW+ Mini Power Distribution Panel

Schneider Electric 865-1013-01 Conext XW+ Mini Power Distribution Panel

Pre-Wired, 120-240VAC, For One Inverter Only, Not Expandable, RNW865101301

The Conext™ XW+ Mini Power Distribution Panel is factory-wired and labeled to support the integration of a single Conext XW+ inverter/charger and Conext MPPT Solar Charge Controllers with a single battery bank. The XW+ Mini PDP ships with breakers, bus bars and cables. The XW+ Mini PDP supports single-phase, split phase, or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW+ Mini PDP enclosure to be mounted and configured on either side of the inverter/charger.

The XW+ Power Distribution Panel is designed to save signifiant time and money during installation, when compared to custom solutions.

NOTE: A mounting bracket and Conext XW+ Conduit Box are also supplied with each Mini PDP.

Features

Higher Return on Investment
- Integrate multiple XW+ inverter chargers and MPPT Solar Charge Controllers with a single battery bank
- Repeatable standard installation that saves time and money

Flexible
- Single-phase split-phase or three phase systems
- Configure to the left or right side of the XW+ inverter/chargers
- Multiple field configurable conduit entry points on the back, bottom, top and sides
- DIN Rail mounting for QOU type and Multi-9 AC breakers

Easy to Service
- Breaker configuration allows XW+ inverter/chargers to be AC bypassed for servicing
- Field-reversible door panel allows for visual inspection
