Tamarack Solar 2.3 Rail 84IN Black Flush Mount 4 Panel Rail Kit

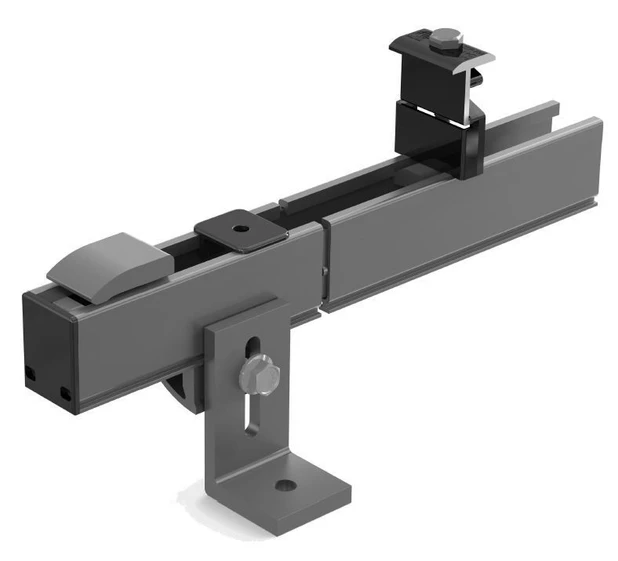

Tamarack Solar New flush mount is a visually appealing, low profile, photovoltaic (PV) module installation system that significantly lowers PV module installation.

These new rail kits contain all the parts required to mount 4 typical 60-cell or 72-cell modules that have a thickness of 30mm to 40mm. Can be used with any roof attachment that can accommodate a 5/16-inch bolt

Certified to meet local and International Building Codes when installed in accordance with this manual. The design load rating meets the minimum requirements of 10 PSF downward pressure, 5 PSF upward pressure and 5 PSF down-slope load. Module orientation may be portrait or landscape. Designed for use with most third-party roof attachments including Solar Roof Hooks, Quick Mount PV, Ironridge Flashfoot, S-5 Clamps, etc.

Features:

• Kits contain all parts to needed to mount up to 4 or 8 solar panels
• Various snow and wind ratings can be met with the two profiles available
• One tool installation - All bolts tighten with a ½-inch socket
• Easy and cost-effective wire management -PV cables and wiring for module-level electronics fits inside rails
• Flexible - Rails mount to any roof attachment that can be used with a 5/16 inch bolt
• UL 2703 Listed -All components meet the UL standards and have a Class A Fire Rating for Type 1 and 2 modules
• PE Certified - Pre-stamped engineering letters available for most states
• One simple ground lug will mount into the top channel, with no drilling required, to ground the whole system
• Plastic end caps provide the finishing touch to the installation
• Universal module clamps fit any module with frame thickness of 30mm to 40mm
