Renogy

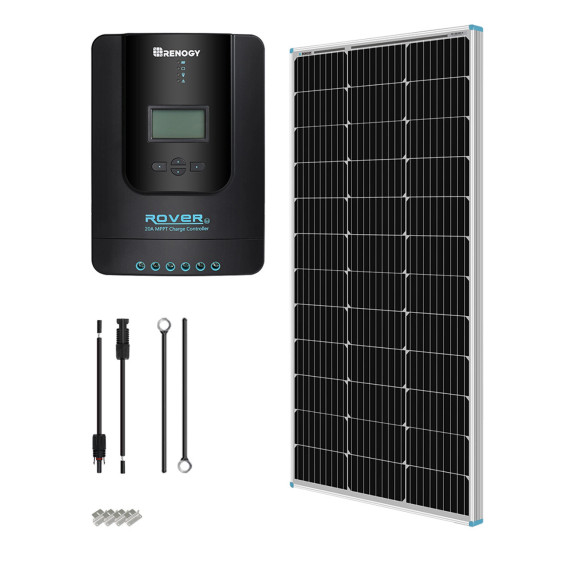

Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller

SKU:
RNG-KIT-STARTER100D-RVR20-US
SHIPPING:
FREE Shipping! (Estimated delivery 5-7 business days)
  • Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller
  • Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller
  • Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller
  • Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller
  • Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller
  • Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller
  • Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller
$235.99

Description

Renogy 100 Watt 12 Volt Solar Starter Kit with 20A MPPT Charge Controller

With a Renogy 100W Monocrystalline Starter Kit MPPT, you won't have to wonder about whether or not you're getting the most out of your system. Designed to draw out your system's potential, this kit includes our 20A MPPT charge controller which uses Maximum Power Point Tracking technology, transferring power up to 30% more efficiently than PWM charge controllers.

Geared towards providing you with the most efficient system possible, the Renogy Starter Kit MPPT could be the perfect fit for you.



KEY FEATURES:

Efficient
  • High solar cell efficiency: Monocrystalline 18.4%
  • Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
  • The included MPPT charge controller has a peak efficiency of 97%
Reliable

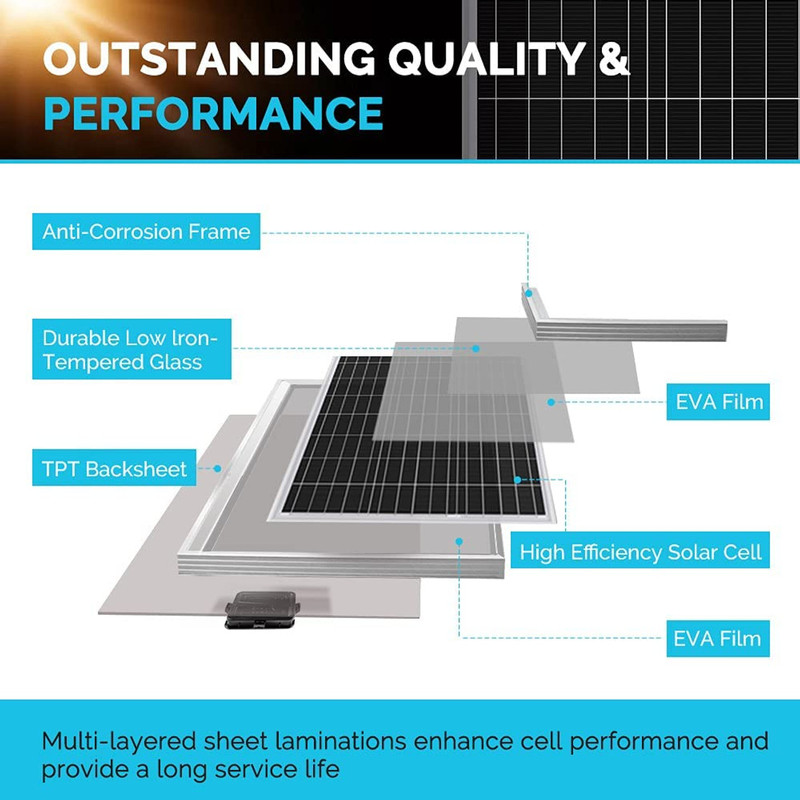

  • EL tested solar modules; no hot-spot heating guaranteed
  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
  • TPT back sheet ensures smooth performance over a long period of time
  • IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
  • Sealed, Gel and Flooded charging algorithim ready
  • 4-Stage battery charging process for a rapid, efficient, and safe battery charging
  • Timer function with 1-15 hour option
Safe
  • The Renogy 20A MPPT is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
  • Pre-drilled holes on the back of the panel allow for fast and secure mounting
Expandable
  • With a Renogy 20A MPPT Charge Controller, you can expand your system up to a maximum of 200W (12 Volt) or 400W (24 Volt)
  • The Renogy 100W Monocrystalline Expansion Kit is the perfect solution for future expansion

Please note:When you add panels to your system, you will need one set of Z brackets for each additional panel. You will also need one pair of branch connectors to expand your system to 600W or 800W





PACKAGE INCLUDES

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)

Rover 20A MPPT Charge Controller

Mounting Z Brackets

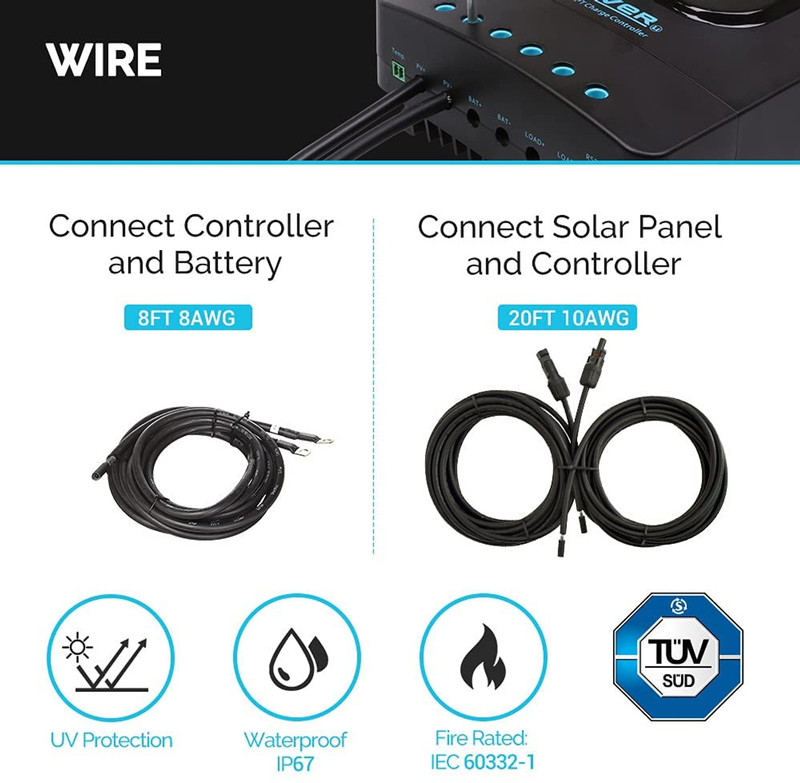

Renogy 20ft 10AWG MC4 Adaptor Kit (A pair)

Renogy 8ft 8AWG Tray Cables (A pair)

Solar Y Branch Connectors MMF+FFM Pair



Specifications


RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

Maximum Power: 100W

Maximum System Voltage: 600V DC (UL)

Open-Circuit Voltage (Voc): 24.3V

Short-Circuit Current (Isc): 5.21A

Optimum Operating Voltage (Vmp): 20.4V

Optimum Operating Current (Imp): 4.91A

Weight: 14.1 lb (6.4 kg)

Dimensions: 41.8 x 20.9 x 1.4 in (1062 x 530 x 35 mm)


ROVER 20A MPPT CHARGE CONTROLLER

Rated Battery Current: 20A

Max. Battery Voltage: 32V

Rated Load Current: 10% to 90% NC

Max Solar Input Voltage: 100VDC

Working Temperature: -35°C to 45°C

Max Terminal Size: 8AWG

Weight: 4.41lb

Dimension: 9.37 x 6.81 x 2.85 in


RENOGY 20FT 10AWG MC4 ADAPTOR KIT (A PAIR)

Length: 20ft

AWG: 10

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F


RENOGY 8FT 8AWG TRAY CABLES (A PAIR)

Length: 8ft

AWG: 8

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F


MOUNTING Z BRACKETS (SET)

Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets: Four Nuts


SOLAR Y BRANCH CONNECTORS

Withstanding voltage: 1000V DC(TUV), 600V(UL)

Rated Current: 50A

Protection Degree: IP67, mated

Protection Class: Class II

Temperature: -40°F to +194°F


MANUFACTURER'S WARRANTY INFORMATION

Panels: 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty

Accessories: 1-year material warranty
