Renogy 100 Watt 12 Volt Solar Starter Kit
- SKU:
- RNG-KIT-STARTER100D-WND30
- UPC:
- 799475028984
- SHIPPING:
- Free Shipping! (Estimated delivery 2-3 weeks)
Customize this kit to meet your needs.
We'll adjust the parts list to match your energy usage, site conditions, and product preferences.
Questions? We’re Here to Help.
Get timely, human assistance from people with real-world experience. No question is too large or too small - reach out to us for guidance.
We're open M-F, 6am-4pm PST. After-hours messages get a response within 1 business day.
Description
Renogy 100 Watt 12 Volt Solar Starter Kit
The Renogy 100W Solar Power Starter Kit is perfect for new customers wanting to get a start in solar. The Starter Kit is great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins — providing many benefits, including, but not limited to, quiet power production and grid independence. Adding a monocrystalline solar panel kit can extend your travels further then ever before.
This solar kit comes with the tools necessary for a new system: one Renogy 100W 12V Mono Solar Panel, one 30A PWM Wanderer Li Charge Controller, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 10AWG Tray Cable, and one set of Z-brackets. Start your solar adventure with a Renogy Starter Kit.
Key Features
Efficient- High solar cell efficiency : Monocrystalline 21%
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed, Gel Flooded and Lithium charging algorithm ready
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- The Renogy Wanderer is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
- With the Renogy Wanderer Li 30A PWM Charge Controller, you can expand your system up to a maximum of 400W. The Renogy 100W Monocrystalline Expansion Kit Expansion Kit is the perfect solution for future expansion

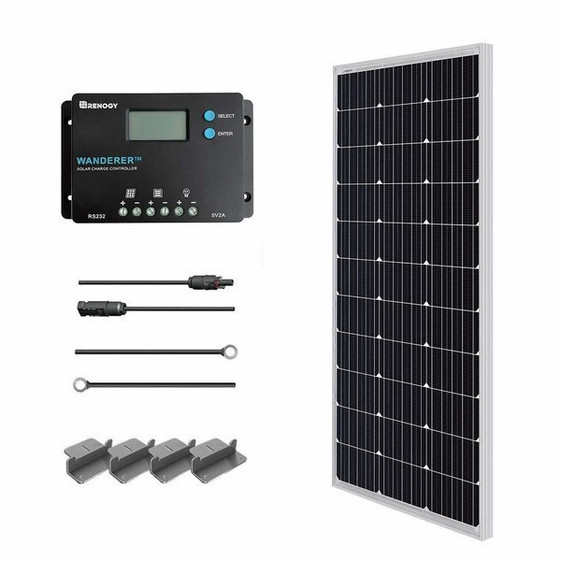

Package Includes
- 100W Mono Solar Panel
- Wanderer Li 30A PWM Charge Controller
- Mounting Z Brackets
- Renogy 20ft 12AWG MC4 Adaptor Kit (A pair)
- Renogy 8ft 12AWG Tray Cables (A pair)
Specifications
| Renogy 100W Monocrystalline Solar Panel | |
|---|---|
| Maximum Power: 100W | Maximum System Voltage:600V DC (UL) |
| Open-Circuit Voltage (Voc): 21.6V | Short-Circuit Current (Isc): 6.24A |
| Optimum Operating Voltage (Vmp): 17.9V | Optimum Operating Current (Imp): 5.72A |
| Weight: 16.5lbs | Dimensions: 42.2 X 19.6 X 1.38 inches |
| Renogy 8ft 10AWG Tray Cables (A pair) | Mounting Z Brackets (Set) |
|---|---|
| Length: 8ft | Eight Long Cap Bolts and Four Short Bolts |
| AWG: 10 | Four Spring Washers and Four Washers |
| Rating Voltage: 600/1000V | Four Z Shape Solar Panel Brackets |
| Temperature: -40°F to +185°F | Four Nuts |
| Renogy Adaptor Kit (Set) | The Renogy Wanderer Li- 30A PWM Negative-Ground Charge Controller |
|---|---|
| Length: 20ft | Nominal Voltage: 12 VDC |
| AWG: 10 | Rated Charge Current: 30A |
| Rating Voltage: 600/1000V | Max. PV Input Voltage: 25 VDC |
| Temperature: -40°F to +185°F | Max. PV Input Power: 400W (12V) |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
