Description

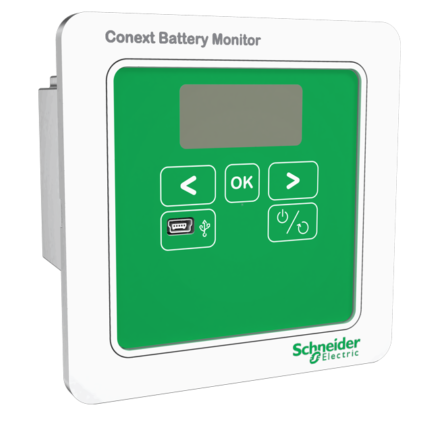

Conext™ Battery Monitor indicates hours of battery based runtime and determines battery bank state of charge. Conext Battery Monitor shares key battery bank parameters with Conext XW Pro or XW+ inverter/chargers improving overall system performance of 24V and 48V battery banks. Detecting battery string imbalance is determined using innovative mid-point sensing technology providing time to address the issue before performance is significantly impacted.
Conext™ Battery Monitor features built‑in data logging and a local display to selectively show the voltage, current, consumed amp‑hours, remaining capacity, and remaining hours. The same information and battery bank data is reported by Conext™ Gateway and distributed to other Conext devices such as XW Pro or XW+ inverter chargers, MPPT Solar Charge Controllers, Automatic Generator Start module, and System Control Panel via XanbusTM network connectivity, enhancing performance of the overall system.
Industrial and telecom customers can integrate Conext™ Battery Monitor with energy management systems over Modbus RS485.
Features
Higher Return on Investment
Get the most out of battery based Conext inverter/charger systems
Cleary understand hours of available battery based autonomy
Detect imbalance between battery-strings before it becomes an issue
Designed for Reliability
Extensive quality and reliability testing
Highly Accelerated Life Testing (HALT)
Flexible
Stand-alone application or integration with Conext™ XW Pro or XW+ inverter/charger systems
Enables State of Charge triggers for AGS module control of diesel generators
Enables balancing of multi-battery bank systems for large clustered Conext™ XW+ inverter charger systems
Easy to Service
Remotely monitor, troubleshoot or upgrade firmware with InsightHome, InsightFacility
Built-in data logger
Easy to Install
Wall-mount, DIN-rail mount, panel mount
RJ45 connections for XanBus network and battery signals
Configure with front-panel buttons, InsightHome, InsightFacility or RS485 Modbus
Specifications
-
Manufacturer: Schneider Electric
Product Line: Battery Monitor
Model ID: 865-1080-01
