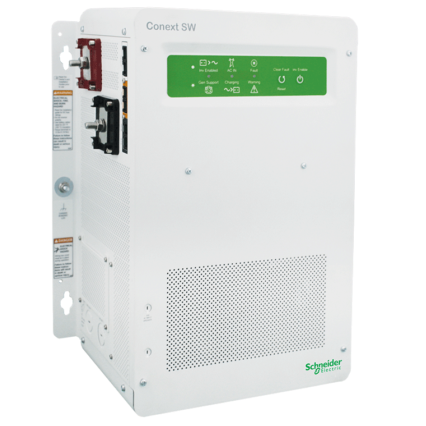

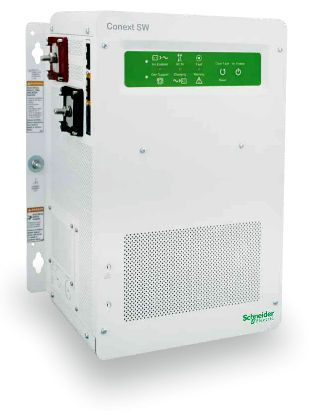

Schneider Conext SW 865-4024 4.0 Kw Hybrid Inverter

SKU:
320-0095
SHIPPING:
Estimated Arrival: 5-10 business days
$1,899.99

Description

Schneider Electric, Conext SW4024-120/240 battery inverter, 4000W, 120/240VAC, 50/60Hz, 30A Transfer, 24VDC, Sinewave, 90A Charger, 2 Yr Warr, with BTS, 865-4024-21

Features

Conext SW 120/240V is a pure sine wave, hybrid inverter system with switchable 50/60 Hz frequencies that is ideal for off-grid, backup control, and self-consumption applications. Conext SW has a 120/240 VAC output and can generate 120/240 VAC from a 120 VAC input without the use of an external transformer. The Conext SW is combined with fuel-based generators as required to accommodate loads larger than the generator's output for increased off-grid power. It's also self consumption ready, allowing solar consumption to take precedence over grid consumption while retaining zero grid export. When utility supply is low, the Conext SW works with the grid to avoid peak utility charges and to support the grid. The total output power of the device can be doubled by stacking two Conext SW modules, and available solar charge controllers allow for the integration of solar capacity as required.

Specifications

  • Manufacturer: Schneider
    Product Line: Inverter / Charger
    Model ID: 320-0095

  • Manufacturer Part #: 865-4024-21
    Item Weight: 60 lb
    Dimensions (LxWxH): 7.6 x 13.4 x 16.5 inches
    Manufacturer Product Line: Conext SW
