Quick Mount PV QMUTM-A-12 Universal Tile Flashing
- SKU:
- SLR-210-0949
- SHIPPING:
- FREE Shipping! (Estimated Arrival: 5-10 business days)
Description
Quickmount, Flashing, Universal Tile Mounts, 18" x 18", Mill Finish, QBASE, Qty. 1, QMUTM -A-12
The QBase Universal Tile Mount uses the QBase foundation and two spun aluminum cone flashings for installing solar panels on tile roofs with superior strength and waterproofing. The installer can conform the secondary top flashing to fit virtually any roof tile, flat or curved.
Features
- Safety - Patents pending. Meets or exceeds tile roofing best practices. All exposed hardware is 18-8 stainless steel.
- Efficiency - Works with all leading racks. 100% IBC compliant. Attaches to roof structure with 2 or 4 fasteners. 3031 lbs. average pullout (Douglas fir); 803 lbs. average shear. QBase is the strongest off-the-shelf mechanical mount. 9x9-inch subflashing with spun aluminum cone. 18x18-inch malleable top flashing with spun aluminum cone.
- User Friendly - 10-year warranty; 50-year expected life. All fasteners and hardware included. Available through leading distributors. Flashed at both the deck and top levels.
Specifications
-
Manufacturer: Quick Mount PV
Product Line: QMUTM Series
Model ID: QMUTM-A-12 -
Mechanical Data
Technology: Flashing
Dimensions:
13.00 x 2.00 x 13.00 Inches
Weight: 2.24 lbs
Finish: Mill
Roof Type: Universal Tile
Related Products
$13.99
QuickMount, Flashing, Tile Replacement, S-Tile, 3-1/4" Post, order with Base Mount #SLG-270-0898, Mill Finish, QBLOCK, Qty. 1, QMTR-S325-A-12
The Tile Replacement Mount provides a fast and easy...
$8.49

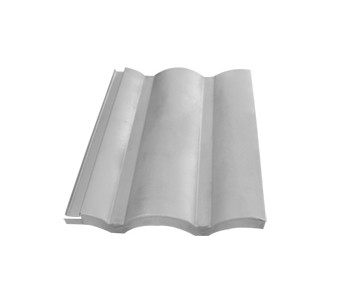

QuickMount, Tile Replacement Flashing, W-Tile, Use with QM Tile Hook, MILL, 1 ea, QMC-TRF-W A 12
