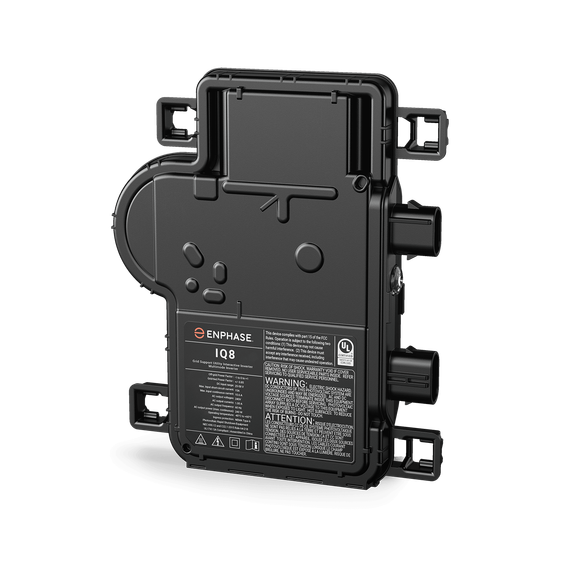

Enphase IQ8-60-2-US Microinverter

IQ8 Microinverters: Advanced DC to AC Power Conversion

Introducing our newest IQ8 Microinverters, recognized as the industry’s first grid-forming microinverters with split-phase power conversion capability. This ensures an efficient transformation from DC power to AC power.

Superior Technology & Features

The centerpiece of this semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC). Built with advanced 55nm technology and high-speed digital logic, this chip offers super-fast response times to changing loads and grid events. It’s the perfect solution to alleviate battery sizing issues in home energy systems.

Integration & Compatibility

As part of the Enphase Energy System, IQ8 Microinverters work seamlessly with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App for sophisticated monitoring and analysis.

Reliability & Warranty

Setting new benchmarks in reliability, the IQ8 Microinverters boast over one million cumulative hours of power-on testing. This enables us to provide an industry-leading limited warranty of up to 25 years.

Key Features:

• Lightweight and compact design
• Plug-n-play connectors for ease of use
• Power Line Communication (PLC) for efficient component communication
• Simple two-wire cabling for faster installation
• Ability to produce power even during grid outages
• Class II double-insulated enclosure for safety
• Optimized for high-powered PV modules
• Compliant with latest advanced grid support regulations
• Remote updates to match the latest grid requirements
• Configurable grid profile support
• Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)

Package Includes:

• IQ8 Microinverter
• Mounting bracket
• Q-DCC-2 plug-n-play MC4 adapter cable

Manufacturer Part Number: IQ8-60-2-US
