JA Solar

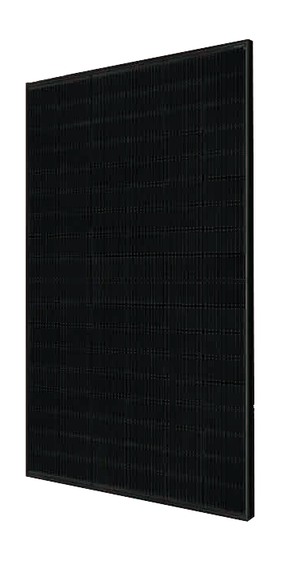

JA Solar JAM54S31-390/MR 390w Mono Solar Panel

SKU:
JAM54S31-390/MR
Availability:
Ships LTL Freight Only
Minimum Purchase:
8 units
Unavailable

Description

JA SOLAR 410W MONO SOLAR PANEL - JAM54S31-390/MR
JA Solar 390w Mono PERC 54 cell 1500V module, 1200mm cables with MC4 connectors. Black Frame, Black Backsheet, JAM54S31-390/MR

JA S31 Series modules are assembled with 11BB PERCIUM cells in half cut configuration. This cell configuration shows improved output, better temperature coefficient and reduces the impact of shade on overall module output.

Features

  • Key Features - Higher output power. Lower LCOE. Less shading and lower resistance loss. Better mechanical loading tolerance.

Specifications

  • Manufacturer: JA Solar
    Product Line: Deep Blue 3.0
    Model ID:
    JAM54S31-390/MR

  • Mechanical Data

    Technology: Monocrystalline (Mono)
    Dimensions:
    67.8 x 44.65 x 1.18 inches
    Weight: 47.4 lbs
    Number of Cells: 54 Cell
    Junction Box: IP68, 3 Diodes

  • Electrical Data

    Rated Maximum Power (Pmax): 390 Watts
    Open Circuit Voltage (Voc): 36.85 Volts
    Maximum Power Voltage (Vmp): 30.64 Volts
    Short Circuit Current (Isc): 13.61 Amps
    Maximum Power Current (Imp): 12.73 Amps
    Module Efficiency: 20%

INFO & GUIDE

pdf.pngJA Solar JAM54S31-390/MR Specs
pdf.pngJA Solaris Installation Guide
pdf.pngJA Solar Warranty
View AllClose

Warranty Information

Warranty: 12 Year Limited Product Warranty Power Warranty: 25 Year Limited Peak Power Warranty
View AllClose
