Schneider Electric
Schneider Electric 120/240VAC Breaker Kit 3 Sets 2-Pole 60A 120/240VAC (For PDP)
- SKU:
- 865-1215-01
Everything you need to go solar, all in one kit.
Spec out a full parts list for your solar project. We'll help design a complete system to meet your project goals.
Questions? We’re Here to Help.
Get timely, human assistance from people with real-world experience. No question is too large or too small - reach out to us for guidance.
We're open M-F, 6am-4pm PST. After-hours messages get a response within 1 business day.
Description
The 60 A, 120/240 VAC Breaker Kit is used for AC distribution for a second or third XW inverter connection to the Power Distribution Panel. If the Power Distribution Panel was ordered with AC breakers, a single breaker kit can be used for connecting two or three inverters. With two inverters, the three additional breakers are used for AC in (grid), bypass, and AC Out (load). With three inverters the breakers in the PDP are used for AC in (grid) and AC Out (load), and bypass functionality would be installed externally (not included).
Features
Includes:

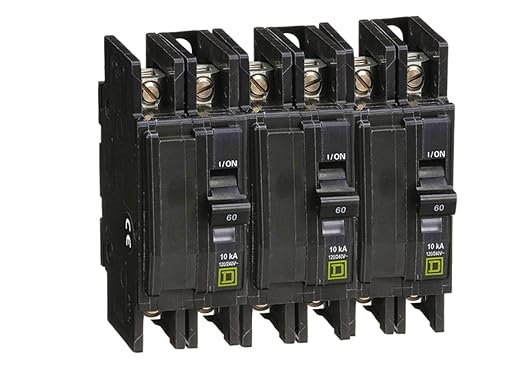

Three 60A, 120/240 Vac, two-pole, Square D, type QOU, DIN-rail mountable AC breakers
Four Jumpers with four tabs each
Bypass interlock plate for dual inverter systems
Specifications
-
Manufacturer: Schneider Electric
Product Line: Breaker
Model ID: 865-1215-01
