Rich Solar

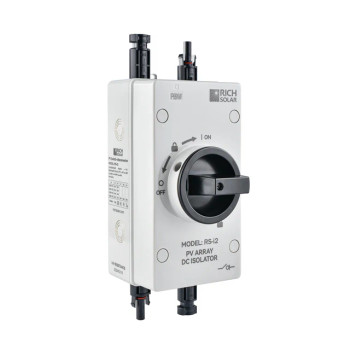

Rich Solar | Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 2 Pole 1 String | Easy to Install
- SKU:
- RS-i2
- UPC:
- 774533743047
Description
Features
-
Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverters.
- Outdoor rated
- Off and on-grid applications.
- Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
- Single pull double throw 1 IO.
- Ensures the disconnection of load circuits and suppression of the arc in under 3 mil secs.
- Lock out option.
- Output and input connections are built for easy set up and installation.
Specifications
-
Manufacturer: Rich Solar
Product Line: Disconnect Switch
Model ID: RS-i2
-
Max. Rated Current: 32A Max. Rated Voltage: 1500A Circuit: 2 pole and 1 string Standard: TUV, SAA, CE, IP certified & ROHS compliant Waterproof: IP66NW Arc time <3ms Operating Temperature: -40℉ to +185℉ (-40℃ to +85℃) Warranty: 10 years warranty Dimensions(HxWxD): 9.8x3.8x4.3in / 249.4x97.6x110 mm Non-corrosive
