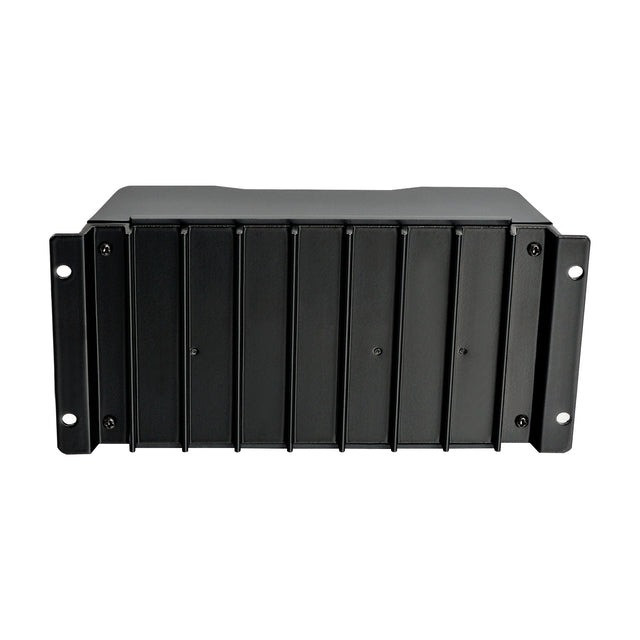

Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated

SKU:
RS-PWM30RV
UPC:
650380717403
  • Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
  • Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
  • Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
  • Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
  • Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
  • Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
  • Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
MSRP: $79.99
$63.99
— You save $16.00

Description

The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.

Features

  • Flush mounted and embedded installation design
  • High quality and low failure rate components (ST/IR) to ensure the product lifetime
  • 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
  • Battery type: Sealed, Gel, Flooded
  • Real-time energy statistics feature
  • Battery temperature compensation feature
  • Digital LCD monitor for informative display of operational parameters and fault messages
  • Voltage drop and temperature compensation sampling interface design
  • RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
  • Multiple communication peripherals
  • Rated charging current at working temperature without de-rating
  • Extensive electronic protections
  • Monitor and set the parameters via PC software or APP

Specifications

  • Manufacturer: Rich Solar
    Product Line: Accessories
    Model ID: RS-PWM30RV

Electrical Specifications

  • Nominal Voltage: 12/24VDC or Auto
  • Battery Input Voltage Range: 8V～32V
  • Rated Charge Current: 30A
  • Max. PV Short Circuit Current: 30A
  • Max. PV Open Circuit Voltage: 50V
  • Battery Type: Sealed(default)/Gel/Flooded
  • Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
  • Temperature Compensation Coefficient: -3mV/°C/2V(Default)
  • Charge Circuit Voltage Drop: 0.21V

Environmental Parameters

  • Storage Temperature Range: -30°C～+80°C
  • Working Environment Temperature: -20°C～+55°C(100% input and output)
  • Relative Humidity: ≤95%, N.C.
  • Enclosure: IP30
  • Grounding: Common negative
  • Altitude: 5000m
  • Pollution Degree: PD2

Mechanical Parameters

  • Dimension(L×W×H): 178.5×105.5×48.3mm
  • Mounting Dimension: 166.5×93.5mm
  • Mounting Hole Size: Φ5mm
  • Terminal: 16mm2/6AWG
  • Recommended Cable: 6mm2/10AWG
  • Net Weight: 0.31kg
