Tamarack Solar 70-0300-PGM High Wind Top Cap

Tamarack, Additional Pole Cap for high wind locations, 2 pole, 70-0300-PGM

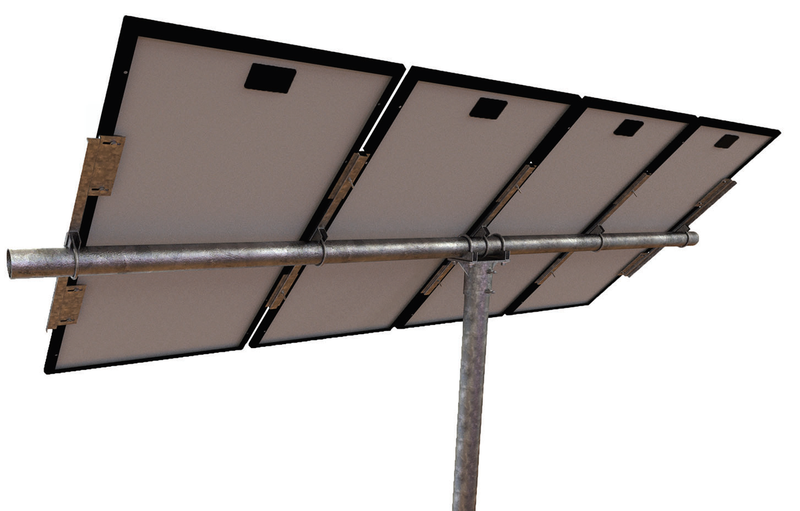

The PGRM Series Pole Mount can be used to mount up to 6 solar modules with a frame thickness between 1.18” and 2”.

Install up to 92 square feet of modules on a single 4” Schedule 40 pole and up to 130 square feet of modules on two 4” schedule 40 poles
Suitable for wind speeds up to 115 MPH
For high wind locations add an additional vertical pole
Tilt angle can be adjusted from 0° to 60° and is easily adjusted seasonally
All sizes can ship by UPS Ground
Simple one-person installation and adjustment
User supplies 4” schedule 40 steel pipe(s) for vertical pole and a 3” schedule 40 steel pipe for the horizontal beam.
Calculation of the required horizontal beam length (L) in inches: L = W x N + (N + 1) x 1.4 where N = number of modules and W = module width in inches

Features

• Highlights - Easy installation and high compatibility.
