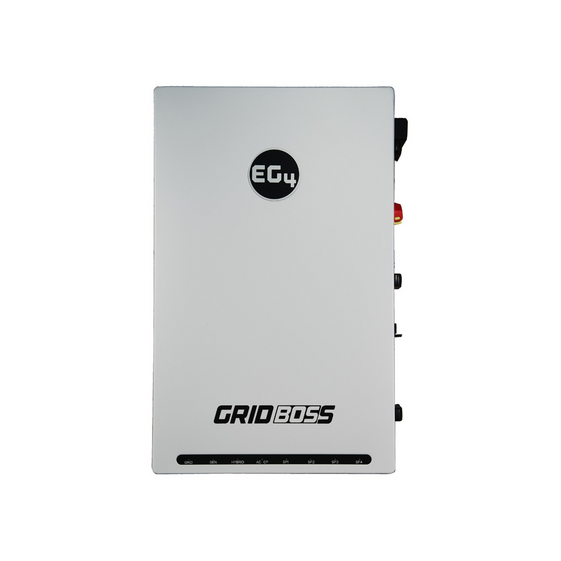

EG4 GridBOSS EG4MID2P200AV3.1 Microgrid Interconnect Device

EG4, GridBOSS Microgrid Interconnect Device (MID), Split Phase, 200A Max, 60Hz, NEMA 3R, Excluding Breakers EG4MID2P200AV3.1

The EG4 GridBOSS Micro-Grid Interconnection Device (MID) simplifies Energy Storage Systems (ESS) by consolidating multiple components into a single, innovative unit. It replaces traditional elements such as the point of common connection, back-fed breakers, feeder taps, tap breakers, supply-side taps, transfer switches, and dedicated combiner panels for grid-in, grid-out, and generator input. As a versatile solution, the GridBOSS serves as the service entrance equipment* when paired with the utility meter, providing a single point of connection for utilities, hybrid inverters, generators, smart loads, and AC-coupled inverters.

Features

Centralized ESS Control
Provides a single point of connection for utility, hybrid inverters, generators, smart loads, and AC-coupled inverters.

Reduced ESS Complexity
Replaces up to 10 components with one unit, including point of common connection, back-fed breakers, feeder taps, feeder tap breakers, supply side taps & breakers, transfer switches, and dedicated combiner panels for grid-in, load/EPS, and generator input.

Service Entrance Rated
200 Amp Service Entrance with A 22 K Aic Main Breaker, Acts as Service Entrance Equipment in Conjunction with A Utility Meter and A 200 a Eaton Breaker Csr2200 N (csr25 K).

Remote Monitoring
Enable Remote Monitoring, Configuration, and Firmware Updates Through the Eg4 Mobile App or Online Monitoring System.

Smart Ports
Includes Load Shedding, Which Disconnects Loads During Low Battery Voltage and Reconnects on High Voltage. Power Shedding Connects Loads when At Full Soc and Pv Flow and Disconnects on Low Soc or Pv Loss.
