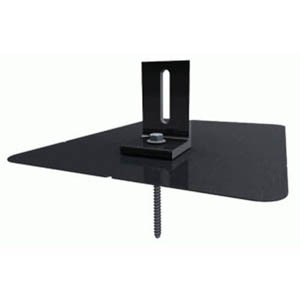

IronRidge L-Mount, Structural Screw, 9”x12”, Black (Priced as each)

The L-Mount attachment, featuring an open-slotted L-Foot, is designed for cost-effective, single-bolt installation onto existing composition (asphalt) shingle roofs. The patented Elevated Water Seal Technology has been integrated into the open-slotted L-Foot and flashing for fast installation, to provide maximum waterproofing.

To maximize versatility, the attachment kit is available with a lag bolt or structural screw option-meaning it can work with all side-mounted racking in the market. Both hardware options come with an installed EPDM bonded washer to seal and prevent water entry.

The redesigned L-Foot can rotate 360 degrees for optimal adjustability and positioning of the rail, while the open slot allows the rail hardware to quickly drop-in. L-Mount also features a 9x12" aluminum flashing with alignment guides and rounded corners, to easily slide under shingles and speed up installation on the roof. The kit is available in both mill and black finishes.

Specifications

Manufacturer: IronRidge
Product Line: Racking and Mounting
Model ID: IR-QM-LMST-01-B1
