Ecoflow

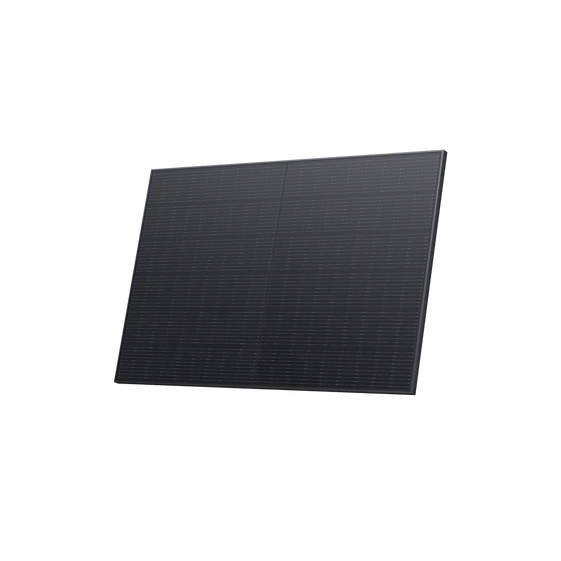

EcoFlow 400W Rigid Solar Panel

SKU:
ZPTSP300
  • EcoFlow 400W Rigid Solar Panel
  • EcoFlow 400W Rigid Solar Panel
  • EcoFlow 400W Rigid Solar Panel
  • EcoFlow 400W Rigid Solar Panel
$999.00

Description



Features

• A 23% conversion rate to sunlight
• All-black design that fits any house style
• Built to last with an IP68 waterproof rating
• Fast and Easy Installation
• Up to a 10-year warranty

High Solar Energy Conversion

Made from highly efficient monocrystalline cells, the 400W rigid solar panel has an excellent efficiency rating of 23%, allowing you to charge faster than using similar-sized panels. Combine this panel as part of your existing PV system or Power Kits setup, and allow the integrated MPPT algorithm to optimize your solar input.

Waterproof & Durable

The 400W rigid solar panel is designed for the outdoors. With an IP68* waterproof rating and a robust anti-corrosive aluminum frame, the panel can withstand a wind speed of up to 130mph* and a significant snow load of up to 113lb* and continue to capture solar energy for years to come.

*Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
*Well-mounted solar panels can withstand a dynamic 2400pa wind pressure load (130mph wind speed) and a static 5400pa snow load (113lb per sq foot of snow).

Off-grid & On-grid Solution

This high-wattage panel works for both on-grid and off-grid solar-powered setups, storing energy for outages, reducing power bills, or powering an off-grid home.

Universally Compatible

EcoFlow solar panels use an all-inclusive solar connector, so you can even use them with your existing 48V power system. The 400W solar panel includes a 300mm charging cable that gives you plenty of space to mount multiple panels, maximizing solar input.

Specifications

  • Manufacturer: EcoFlow
    Product Line: Solar Panel
    Model ID: ZPTSP300

  • Short Circuit Current
    13.79A

    Open Circuit Voltage
    37.10V

    Connector Type
    Solar Connector

    Efficiency
    23%

    Cell Type
    Monocrystalline

    Rated Power
    400W

    Maximum Operating Voltage
    31.00V

    Maximum Operating Current
    12.90A

    Temperature Coefficient of Rated Power
    -0.38%/°C

    Temperature Coefficient of Open Circuit Voltage
    -0.35%/°C

    Temperature Coefficient of Short Circuit Current
    0.06%/°C

    Maximum Fuse Current
    25A

    Maximum System Voltage
    1500V DC (UL)

    Dimension (inch)
    67.8×44.6×1.38

    Net Weight (kg)
    21.8kg

    Dimension (cm)
    172.2×113.4×3.5

    Net weight (lbs)
    48.1lbs

What's in the Box:

1. 2×400W Rigid Solar Panel
2. User Manual and Warranty Card
*The solar to XT60 charging cable is included in EcoFlow portable solar panels.

View AllClose

Warranty Information

10 Years
