Canadian Solar

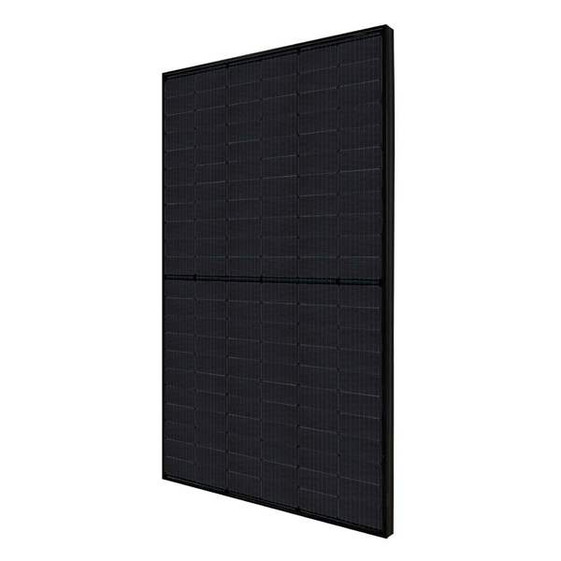

Canadian Solar CS3N-390MS, Pallet of 30 PV Modules, 390W, Black Frame/Black Backsheet, MC4
- SKU:
- CS3N-390MSp
- SHIPPING:
- Estimated Arrival: 5-10 business days
Description
Canadian Solar CS3N-390MS, PV Modules, 390W, Black Frame/Black Backsheet, MC4
Canadian CS3N-MS Modules
Canadian Solar's new High Power Dual Cell Mono-PERC Module, with shade tolerant half cell technology and an additional row of cells, breaks the 20% module efficiency barrier without any sacrifices in value or reliability. Reliability has even been improved with LID + LeTID under 2%, for up to 50% lower degradation throughout the life of the module.
SPECIFICATIONS
| Back Sheet Color | Black |
| Brand | CANADIAN SOLAR |
| Connector Type | MC4-type |
| Fire Class | Class A |
| Frame Color | Black |
| Fused | false |
| Imp | 8.48 |
| Isc | 9.18 |
| NOCT | 41 |
| Vmp | 34.5 |
| Voc | 41.7 |
| Max String Voltage | 1,000 VDC |
| Module Area Efficiency | 19.2 |
| Number of Cells | 132 |
| Power Output Tolerance | +10W |
| Power Rating | 390 |
| Quantity Per Pallet | 30 |
| Series Fuse Rating | 20 |
| SKU Type | FRAMED |
| Static Load Rating | 113 |
| Voltage Temperature Coefficient | .26 |
| Warranty | 25-years |
| Product Height | 1.38 IN |
| Product Length | 76.4 IN |
| Product Volume | 4354.34 CIN |
| Product Weight | 49.6 LB |
| Product Width | 41.3 IN |
MANUFACTURER'S WARRANTY
25 year output warranty
