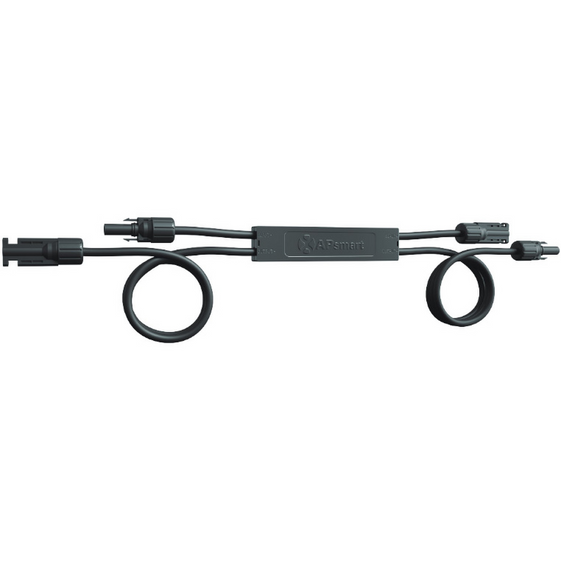

APsmart Rapid Shut Down PLC 1000V UL/TUV, 0.25m input/1.2m output cable, MC4 original
- SKU:
- APSM-RSD-S-415002-V2
Description
Rapid Shut Down PLC 1000V UL/TUV, 0.25m input/1.2m output cable, MC4 original, Mounting brackets - IP68 Compatible with SMA, Fronius Symo Advanced, some Yaskawa/Solectria PVI and other Certified compatible SunSpec protocol inverters.
Features
The RSD-S-PLC meets SunSpec requirements, maintaining normal function by continually receiving a heartbeat signal from the APsmart Transmitter. The RSD executes rapid system shutdown when the Transmitter signal is absent. Users can manually execute rapid shutdown using Transmitter breaker switch.
Specifications
-
Manufacturer: APsmart
Product Line: Inverter Accessories
Model ID: APSM-RSD-S-415002-V2
INPUT DATA (DC)
- Input Operating Voltage Range 8-80V
- Maximum Cont. Input Current (Imax) 15A
- Maximum Short Circuit Current（Isc） 25A
OUTPUT DATA (DC)
- Output Operating Voltage Range 8-80V
- Maximum System Voltage 1000V/1500V
- Maximum Series Fuse Rating 30A
MECHANICAL DATA
- Operating Ambient Temperature Range -40°F to +185°F (-40 °C to + 85 °C)
- Dimensions (without cable & connectors) 5.5" x 1.3" x 0.7"(140 mm x 32 mm x 18 mm)
- Cable Length Input 250mm/Output 1200mm
- Cable Cross Section Size UL:12AWG
- Connector
- Input: Stäubli MC4 PV-KBT4&KST4 or Customized
- Output: APsystems specified or Customized
- Enclosure Rating NEMA Type 6P/IP68
- Protection Temperature 100°C
FEATURES & COMPLIANCE
- Communication PLC
- Safety Compliance NEC 2017, 2020&2023 (690.12); UL1741; CSA C22.2 No. 330-17;
- IEC/EN62109-1; 2PFG2305
- EMC Compliance FCC Part15; ICES-003;IEC/EN61000-6-1/-2/-3/-4
