Description

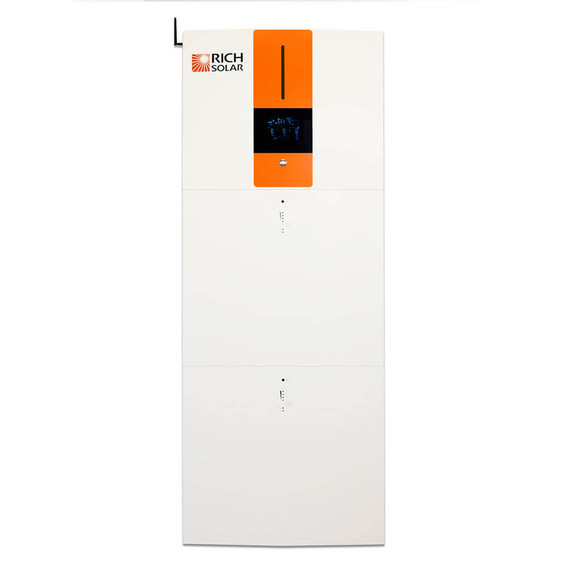

Introducing the RICH SOLAR
All-in-One Energy Storage System
The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.
Features
Power & Performance Features
- Pure sine wave output
- Off-grid application
- Programmable supply priority for PV, Battery, or Grid
- User-adjustable battery charging current
- Battery-independent design
Smart Technology & Connectivity
- Multiple communication options: USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi
- Monitoring app (Android & iOS) for real-time status and control
- Built-in dual MPPT trackers and AC/solar charger up to 120A
- Compatible with utility and generator
- Scalable Li-Ion battery expansion
The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.
Specifications
Manufacturer: Rich Solar
Product Line: All in One System
Model ID: RS-A10
Battery Info
Model: RS-A10
Maximum PV Input Power: 8000W
Rated Output Power: 6500W
Maximum Charging Power: 6500W
PV Input (DC)
MPPT Range @ Operating Voltage: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18A
AC Input
Acceptable Input Voltage Range:
90–140 VAC (For Computers)
80–140 VAC (For Home Appliances)
Maximum AC Input Current: 60A
Battery Mode Output
Nominal Output Voltage: 120 VAC
Maximum Conversion Efficiency (DC/AC): 93%
Battery
Nominal DC Voltage: 48 VDC
Maximum Charging Current: 120A
Dimension (D × W × H): 8.4" × 24.4" × 19.7"
Net Weight: 99 lb
Capacity: 5120Wh
Nominal Voltage: 51.2VDC
Full Charge Voltage (FC): 56V
Full Discharge Voltage (FD): 42V
Typical Capacity: 100Ah
Max Continuous Discharging Current: 120A
Max Discharging Current: 192A at 1 min
Protection: BMS, Breaker
Float Charge Voltage: 52.5V
Charge Current: 20A (0.2C)
Maximum Charge Current: 50A (0.5C)
Standard Charge Method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
Inner Resistance: ≤20mΩ
All In One System Physical
System Dimension (D × W × H): 19.7" × 26" × 49.2"
Net Weight: 287 lb
Standard
Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
Available now at SolarTown – trusted distributor.
