Renogy 700W 12V Pure Sine Wave Inverter

SKU:
RNG-INVT-700-12V-P2
UPC:
810081406130
SHIPPING:
Free Shipping! (Estimated delivery 2-3 weeks)
  • Renogy 700W 12V Pure Sine Wave Inverter
  • Renogy 700W 12V Pure Sine Wave Inverter
  • Renogy 700W 12V Pure Sine Wave Inverter
  • Renogy 700W 12V Pure Sine Wave Inverter
  • Renogy 700W 12V Pure Sine Wave Inverter
  • Renogy 700W 12V Pure Sine Wave Inverter
$154.99
In stock and ready to ship

Description

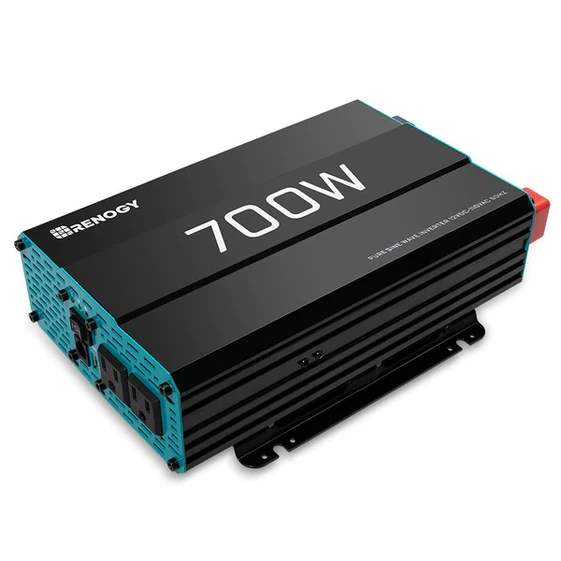

Renogy 700W 12V Pure Sine Wave Inverter

The Renogy 700W Pure Sine Wave Power Inverter is the perfect accessory for smaller off-grid systems, serving as a DC to AC converter, transforming battery-stored DC power into AC power. A necessary component to round up an off-grid system as many of them require a 12V solar inverter to run everyday electronics, from computers to coffee makers. Add this compact solar power inverter to your system to reliably power your devices.

Note: High output AC hardwire terminals not available on the 700W unit, only on 1000W/2000W/3000W units.

Key Features

Safe
  • Optimized for 12 VDC system voltage.
  • Offers high quality waveform with little harmonic distortion.
  • Overload protection for both DC input and AC output to prevent damage to the components and the unit.
  • Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
  • High-speed ventilation fans to help keep the inverter running at a low temperature.
  • Ground-fault circuit interrupter (GFCI) protection
  • ETL Listed, 6AWG cables and remote included
Quiet
  • No static or humming noises.

Minimum 12V Lithium Battery Bank Sizing

The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.

Battery Bank Qty/ Inverter Size50Ah100Ah170Ah
700W 1 1 1
1000W 2 1 1
2000W 4 2 1
3000W 6 3 2

Packages Include

  • Renogy 700W 12V Pure Sine Wave Inverter
  • Inverter Cables
  • Inverter Remote Control

Specifications

Renogy 700W 12V Pure Sine Wave Inverter
Continuous Power: 700W Surge Power: 1400W
AC Output Voltage Range : 115VAC Output Frequency (Nominal): 60 Hz
Output Waveform: Pure Sine Wave Efficiency: > 90%
Operating Temp: -4°F - 158°F THD: < 3%
No Load Current Draw: < 1A Dimensions: 11.75 x 7.38 x 3.32 In
Weight: 5.3 lbs.
Renogy 6AWG Inverter Cables (A Pair)
AWG: 6 (3 FT)


Warranty Information

Inverters

1-year material and workmanship warranty

Accessories 1-year material warranty
