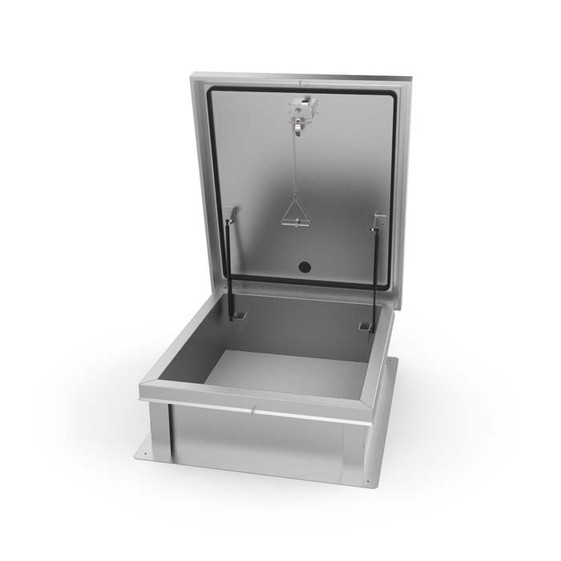

Acudor 24 x 24 Ladder Access Roof Hatch G3232 Galvanized Steel
- SKU:
- G3232
- SHIPPING:
- FREE - Usually arrives in 7-10 days
Description
Acudor Ladder Access Roof Hatch Galvanized
Acudor Ladder Access Roof Hatches are designed to provide convenient, economical access to the roof of a building
RHG Features
- Weather tight construction
- Convenient one-hand operation
- 12" high insulated curb
- Supports 40lbs./sq. ft. live load
RHG Optional Features
- Stainless Steel cover, curb, and/or hardware
- Polycarbonate domes for daylighting
- Louvered Curbs
- Curb Mounted Units
- Curb pitch corrected for sloped roof
- Higher curb heights for "green roof" applications
RHG Standard Sizes
|
|
CURB ID L&W
|
WEIGHT PER HATCH
|
|
MODEL
|
inches (mm) |
lbs. (kg.)
|
|
G3232
|
24 x 24 (610 x 610) |
125 (56.8)
|
|
G3238
|
24 x 30 (610 x 762)
|
130 (58.9) |
|
G3244
|
24 x 36 (610 x 914)
|
135 (61.4)
|
|
G3838
|
30 x 30 (762 x 762)
|
140 (63.5)
|
|
G3844
|
30 x 36 (762 x 914)
|
155 (70.5)
|
|
G4444
|
36 x 36 (914 x 914)
|
170 (77.3)
|
Specifications
Specifications
|
Cover
|
Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of load of 40lbs./sq. ft., the cover is 14 gauge galvanized steel with a 22 gauge galvanized steel inside liner.
|
|
Curb
|
14 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
|
|
Hinge
|
Heavy duty galvanized steel pintle hinges with 3/8" pin |
|
Opening
|
Gas spring operators allow cover to open and close with ease. Inside pull handle allows for easy control when closing cover.
|
|
Door Latch
|
Self latching, zinc plated outside T handle with stainless steel inside lock and lever assembly. Unit also has inside and outside padlock provisions.
|
|
Finish
|
Material is prepared with an iron phosphate wash, followed by a rust inhibiting primer, and then a baked on polyester enamel grey paint.
|
