Description

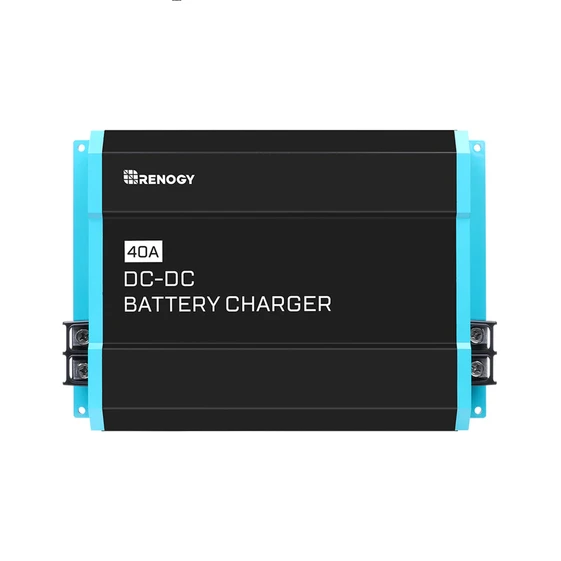

Renogy 12V DC to DC On-Board Battery Charger
The DCC12 Series battery chargers are the most effective way to charge your auxiliary or house batteries from the alternator/starter battery. Compatible with a multitude of alternator types, the DCC12 offers correct charging for AGM, Flooded, Gel, and even Lithium deep cycle batteries! Featuring a 3-stage battery charger and multiple electronic protections, owners can feel confident that their batteries are being charged optimally and automatically. For added safety to personnel, the DCC12 isolates the input from the output preventing incorrect voltage transmission. Easily install the compact yet sturdy DC1212 on RV’s, commercial vehicles, boats, yachts and many more applications!
Key Features
- Multi-Chemistry Battery Types: AGM, Flooded, Gel, and Lithium
- Smart Protection Features: Over-voltage safety, Overheat protection, and Reverse polarity protection
- Battery Input and Output Isolation
- 3-phase Charging: Bulk, Boost, and Float
- Compact, sturdy design, built tough for all conditions
- Increases run time of loads, such as fridges and lights
- Overcomes voltage drop caused by long cable runs
- Prolongs Battery Life
Packages Include
- Option 1: Renogy 20A DC to DC Battery Charger
- Option 2: Renogy 40A DC to DC Battery Charger
Specifications
Renogy 20A DC to DC Battery Charger | Renogy 40A DC to DC Battery Charger |
---|---|
Nominal Voltage: 12V | Nominal Voltage: 12V |
Rated Charge Current: 20A | Rated Charge Current: 40A |
Output: 250W | Output: 500W |
Idle Power Consumption: <0.4A | Idle Power Consumption: <0.4A |
Input Voltage Range: 8V-16V | Input Voltage Range: 8V-16V |
Equalization Voltage: N/A | Equalization Voltage: N/A |
Float Voltage: 13.2-13.8v | Float Voltage: 13.2-13.8v |
Boost Voltage: 14.1-14.7v | Boost Voltage: 14.1-14.7v |
Operating Temperature: -20°C to +50°C | Operating Temperature: -20°C to +50°C |
Dimensions: 8.31 x 6.89 x 2.68 inches | Dimensions: 10.28 x 6.88 x 2.68 inches |
Weight: 2.93lbs | Weight: 4.14lbs |
