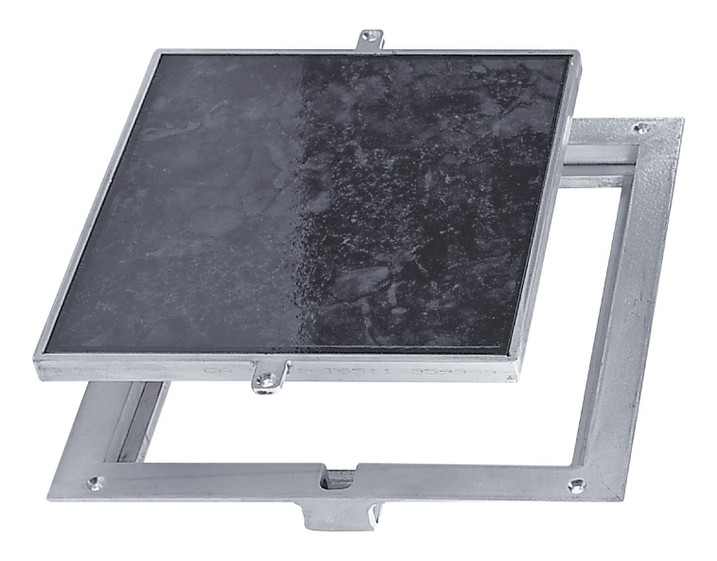

Acudor 24 x 24 FT-8080 Floor Door

SKU:
FT-8080 24 x 24
SHIPPING:
FREE - Usually arrives in 7-10 days
$526.00

Description



Acudor FT-8080 Floor Door

Acudor FT-8080 Floor Door are designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material.

Product Features

  • Recessed 1/8" to accommodate carpeting and vinyl tile.
  • To keep the floor material from cracking or chipping within the door panel, the securing screws are located in the flange of the mounting frame

FT-8080 Standard Sizes

NOMINAL DOOR SIZE W & H
WEIGHT PER DOOR
Inches
mm
lbs.
kg.
8 x 8
203 x 203 6
2.7
12 x 12
305 x 305 9
4.1
18 x 18
457 x 457
18
8.2
24 x 24
610 x 610 36
16.3


Specifications

Specifications

Material
Aluminum
Door
1/4" smooth aluminum plate reinforced for live load of 150 pounds/sq. ft., recessed 1/8" for carpet//vinyl tile
Frame 1-1/2" x 1-1/4" aluminum angle with mounting holes in the top flange
Standard Latch
Door panel is secured to frame with 1/4" x 1" flat head screws
Finish
Mill finish
