Acudor

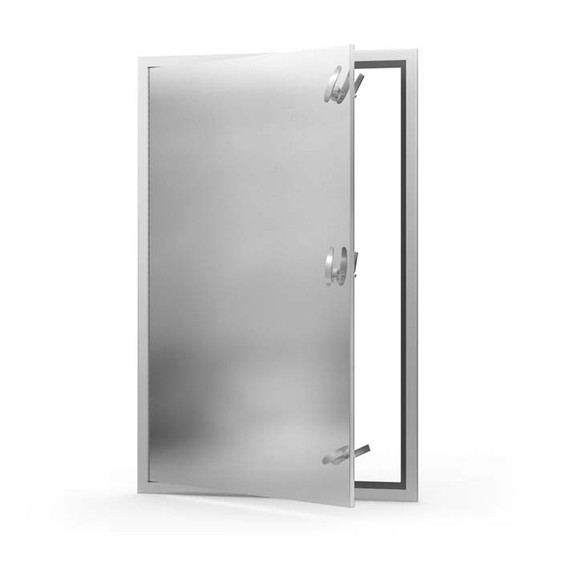

Acudor 30x60 WD-8000 Galvanized Steel Walk Through Access Door

SKU:
WD-8000 30x60
SHIPPING:
FREE - Usually arrives in 7-10 days
$877.10

Description



Acudor WD-8000 Duct Door

Application

  • Designed to provide convenient walk through access to duct work interiors and air handling units
  • Low to medium pressure systems and plenums

Product Features

  • Heavy duty construction, along with a continuous hinge and compression handles

Optional Features

  • Removable Door Panel / Vision Panel / High Pressure Units / Key Operated Handles

WD-8000 Standard Sizes

NOMINAL DOOR SIZE W & H
WEIGHT PER DOOR
Inches
mm
lbs.
kg.
24 x 36
610 x 914 52.8
24
24 x 48
610 x 1219 77.0
35
24 x 60 610 x 1524 97.0 44
24 x 72 610 x 1829 114.4 52
30 x 36 762 x 914 70.4 32
30 x 48 762 x 1219 95.0 43
30 x 60 762 x 1524 119.0 54
30 x 72 762 x 1829 143.0 65
Wall or ceiling opening is W + 3/8" (9mm)

Specifications

Specifications

Specifications

Door / Door Frame
22 gauge galvanized steel, double panel frame is 1 15/16” wide x 1 1/2” deep extruded aluminum with mitred corners
Hinge
Continuous steel piano hinge-opens 180o
Insulation Door panel filled with 1” thick fibreglass insulation - 4 R value
Gasket
1/8” thick x 1/2” wide closed cell neoprene gasketing between door and frame
Standard Latch
Dual acting compression handles-operable from both sides. Units 48” high and under to have 2 handles. Units over 48” high to have 3 handles
Finish
Mill finish
