Renogy
Renogy 400 Watt 12 Volt Solar Starter Kit w/ MPPT Charge Controller
- SKU:
- RNG-KIT-STARTER400D-RVR40-US
- SHIPPING:
- FREE Shipping! (Estimated delivery 5-7 business days)
Description
Renogy 400 Watt 12 Volt Solar Starter Kit w/ 40A MPPT Charge Controller
With a Renogy 400W Starter Kit MPPT, you will be getting a product designed to be the most efficient back up system possible. Designed to draw out your system's potential, this kit includes our 40A MPPT charge controller which uses Maximum Power Point Tracking technology, transferring power up to 30% more efficiently than PWM charge controllers.
Adding a Renogy Starter Kit MPPT to your next adventure can provide you with a system perfect for any off-grid application and grid independence.
KEY FEATURES:
Efficient- High solar cell efficiency: Monocrystalline 18.4%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- The included MPPT charge controller has a peak efficiency of 97%
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed, Gel and Flooded charging algorithim ready
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- Timer function with 1-15 hour option
- The Renogy 40A MPPT is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting

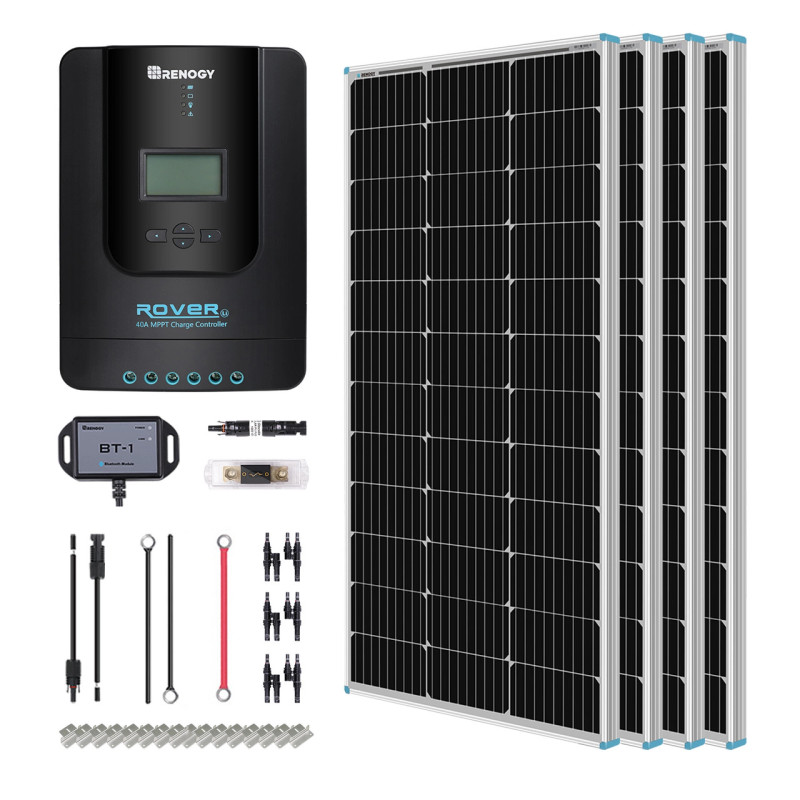

PACKAGE INCLUDES
4x Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)
Rover 40A MPPT Charge Controller
Mounting Z Brackets
Renogy 8ft 8AWG Tray Cables (A pair)
Specifications
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs/6.4kg
Rated Battery Current :40A: 12V/24V Auto Recognition
Max. Battery Voltage: 32V
Rated Load Current: 10% to 90% NC
Max Solar Input Voltage: 100VDC
Working Temperature: -31°F to 113°F
Max Terminal Size: 8AWG
Max. PV Input Power: 12V/520W, 24V/1040W
Max Battery Voltage: 32V
Weight: 4.41lb
Dimension: 9.37 x 6.81 x 2.85 in
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
Length: 8ft
AWG: 8
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
