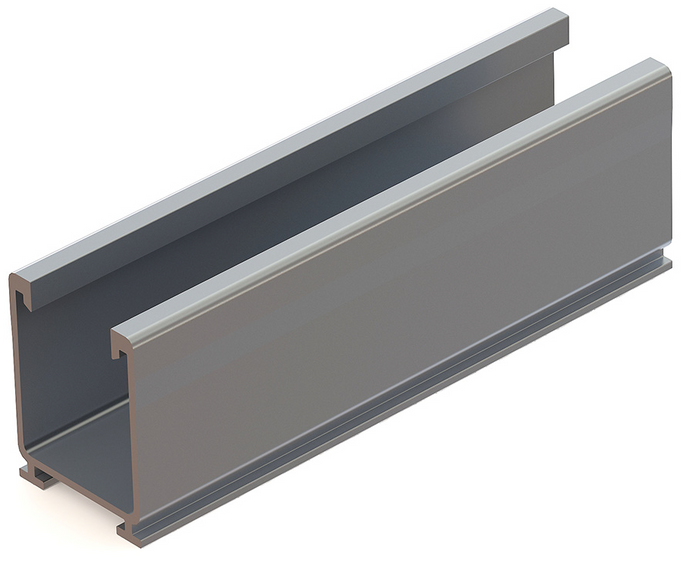

Tamarack Solar 89044 7' Flush Mount 2.3 Rail (box of 8)

Tamarack, 2.3 Rail Mill Finish 84‐inch length (Box of 8), 89044

Low-cost rail-based PV module mounting system provides easy installation, simple wire management, and great strength. The FM System offers multiple innovative assets including: excellent wire management, using the open rail channels for module and MLPE wiring, single tool installation and easy to handle 10.5-foot and 7-foot rails. Shorter rail lengths facilitate easier shipping, transportation, stocking, and handling. Kits made with 7-foot rails can be shipped via UPS!

The rails feature a very unique internal splice design allowing for economical use of shorter rails. The low-cost splice features tool-free installation and does not interfere with module clamps or roof mounts.

Rail mounting is simple and easy. There is never any drilling and parts can be brought on the roof fully assembled and ready to be installed. Simply position the adapter into the T-slots of the rail, and tighten the bolt

Features

• Highlights - PV cables and wiring for module-level electronics fits inside rails to avoid time consuming wire management. Our rails mount to QuickBolt, QuickMount, FlashFoot, S-5! or any roof attachment hat can be used with a 5/16 inch bolt. Install with ease and minimal tools. A 1/2-inch socket fits all fasteners. All components meet the UL standards and have a Class A Fire Rating for Type 1 and 2 modules. Pre-stamped engineering letters available for most states.
