Rich Solar

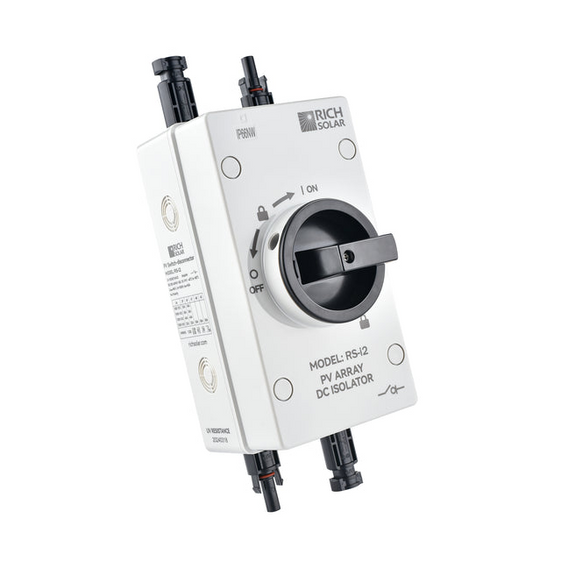

Rich Solar RS-i2 Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String | Easy to Install
- SKU:
- RS-i2
- UPC:
- 774533743047
Questions? We’re Here to Help.
Get timely, human assistance from people with real-world experience. No question is too large or too small - reach out to us for guidance.
We're open M-F, 6am-4pm PST. After-hours messages get a response within 1 business day.
Description
Features
- Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
- Outdoor rated.
- Off and on-grid applications.
- Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
- 2 poles and 1 string.
- Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
- Lockout option.
- Output and input connections are built for easy setup and installation.
Specifications
Manufacturer: Rich Solar
Product Line: Quick Disconnect Switch
Model ID: RS-i2
- Max. Rated Current: 55A
- Max. Rated Voltage: 1500V
- Circuit: 2-pole and 1-string
- Standard: TUV, SAA, CE, IP certified & ROHS compliant
- Waterproof: IP66NW
- Arc Time: <3ms
- Operating Temperature: -40°F to +185°F (-40°C to +85°C)
- Warranty: 3 years
- Dimensions (HxWxD): 9.8x3.8x4.3 in / 249.4x97.6x110 mm
- Non-corrosive
