Canadian Solar

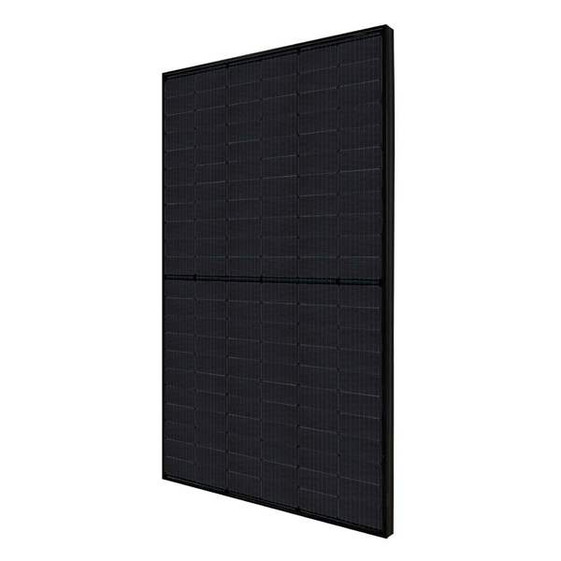

Canadian Solar CS3N-390MS, Pallet of 30 PV Modules, 390W, Black Frame/Black Backsheet, MC4

SKU:
CS3N-390MSp
SHIPPING:
Estimated Arrival: 5-10 business days
  • Canadian Solar CS3N-390MS, Pallet of 30 PV Modules, 390W, Black Frame/Black Backsheet, MC4
  • Canadian Solar CS3N-390MS, Pallet of 30 PV Modules, 390W, Black Frame/Black Backsheet, MC4
Unavailable

Description

Canadian Solar CS3N-390MS, PV Modules, 390W, Black Frame/Black Backsheet, MC4

Canadian CS3N-MS Modules

Canadian Solar's new High Power Dual Cell Mono-PERC Module, with shade tolerant half cell technology and an additional row of cells, breaks the 20% module efficiency barrier without any sacrifices in value or reliability. Reliability has even been improved with LID + LeTID under 2%, for up to 50% lower degradation throughout the life of the module.



SPECIFICATIONS

Back Sheet Color Black
Brand CANADIAN SOLAR
Connector Type MC4-type
Fire Class Class A
Frame Color Black
Fused false
Imp 8.48
Isc 9.18
NOCT 41
Vmp 34.5
Voc 41.7
Max String Voltage 1,000 VDC
Module Area Efficiency 19.2
Number of Cells 132
Power Output Tolerance +10W
Power Rating 390
Quantity Per Pallet 30
Series Fuse Rating 20
SKU Type FRAMED
Static Load Rating 113
Voltage Temperature Coefficient .26
Warranty 25-years
Product Height 1.38 IN
Product Length 76.4 IN
Product Volume 4354.34 CIN
Product Weight 49.6 LB
Product Width 41.3 IN

MANUFACTURER'S WARRANTY

25 year output warranty
