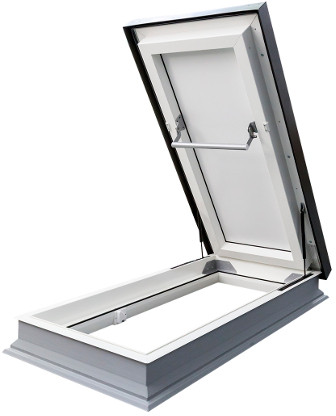

Fakro DRL 27.5 in. x 59.5 in. Venting, Flat Roof Access Hatch
- SKU:
- DRL 2759
- SHIPPING:
- FREE Shipping! (Arrives in 4-6 weeks)
Description
Farko DRL Venting Flat Roof Access Hatch
The Flat Roof Metal Hatch is an insulated metal hatch for accessing a flat roof. It can be combined with the LML wide-step metal attic ladder or any FAKRO attic ladder for ease of access. The piston-assisted hatch stays open at a 80-degree angle while anti-slip covers on the frame ensure safe footing.
DRL- • mounted on the roof surface
- • the whole structure is insulated
Characteristics
- Includes insulated multi-chamber PVC curb and gas springs
- Anti-slip tape on the base ensures safe access to the flat roof
- The sash can be opened up to 60°
- Intended for roofs with pitches between 0° and 5°
- Can be mounted on an additional XRD base with a height of 5.9", for installation in green and living roofs
- Option to install an additional ZBR lock which protects against accidental closure of the sash
- Recommended in combination with the LML attic ladder of the same size
- 10-year warranty
Specifications
Specifications
Dimensions
|
Product Depth (in.)
|
-
|
Rough Opening Height (In.)
|
59.50 in |
|
Product Height (in.)
|
-
|
Rough Opening Width (In.)
|
27.5 in
|
|
Product Width (in.)
|
- |
|
|
Details
|
Cladding Type
|
Plastic
|
Operation
|
Lever
|
|
Features
|
Easy Installation
|
Operation Type
|
Non-Powered
|
|
Features
|
Venting
|
Product Weight (lb.)
|
178 lb
|
|
Frame Material
|
PVC
|
Glass Type
|
N/A
|
|
Skylight Mounting Type
|
Deck Mount
|
Included
|
No Additional Items Included
|
|
U-Factor
|
Maximum Roof Pitch (degrees)
|
5
|
|
|
UV Protection (%)
|
Minimum Roof Pitch (degrees)
|
0
|
Warranty / Certifications
|
Energy Star Qualified
|
Not Qualified
|
Manufacturer Warranty | 10-limited warranty |
