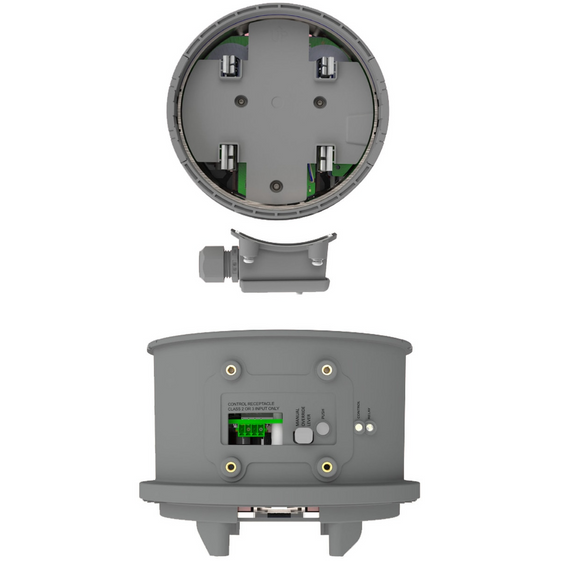

Enphase EN-MC-200-011-V01 IQ Meter Collar is a meter socket adapter with integrated MID
- SKU:
- EN-MC-200-011-V01
Description
IQ Meter Collar is a meter socket adapter with integrated MID and current sensors for energy consumption metering. Rated at 200A, it installs on an ANSI C12 Form 2S meter socket at service entrances or on load side standalone meter sockets.
IQ Meter Collar is a meter socket adapter with an integrated microgrid interconnection device (MID) and energy meter. It is installed on an ANSI C12 Form 2S meter socket. IQ Meter Collar is rated for 200 A continuous current. It can be installed either at the service entrance between an ANSI C12 Form 2S utility meter and the meter socket or on the load side of the utility service on a separate meter socket pan.
Features
Easy to install
- Lightweight and simple to install
- Lowers the cost of whole home backup
- Remote commissioning saves additional truck roll
Robust and reliable
- Thermal management minimizes use of internal fan
- Integrated AC-DC power supply closes MID to restore power to the home when the utility grid is available, even if battery energy is exhausted
- 15-year product warranty
Smart grid-ready
- Complies with advanced grid support, voltage, and frequency ride-through requirements
- Supports remote firmware updates to changing grid requirements
- Configurable at commissioning to comply with applicable grid interconnection parameters
- Meets CA Rule 21 (UL 1741-SA), IEEE 1547:2018 (UL 1741‑SB), Puerto
Rico Electric Power Authority (PREPA), and Hawaiian Electric Industries (HEI) SRD V2.0 grid profiles
Specifications
Manufacturer: Enphase Energy
Product Line: Accessories
Model ID: EN-MC-200-011-V01
Available now at SolarTown – trusted distributor.
