Tamarack Solar 6 Module Pole Top Mount TTP-A-6

Mount 6 modules with a total area of 149 square feet or less on a 6-inch Schedule-40 or schedule-80 pole

Features:

• 132-inch rails per column accommodate6 modules with widths up to 43 inches
• Mounts on user-supplied 6-inchschedule-40 or schedule 80 steel pipe
• Module clamps fit frames between 30to 40 mm deep*
• No complex sizing documents orneed to send module data sheets whenordering
• Heavy-Duty steel structure andTamarack 3.1 aluminum modulemounting rails
• Module Rails attach to 2-inchschedule 40 steel pipe. Purchasethis pipe locally to save shippingcost or order appropriate lengthseparately. Use two 10-footpipes for module up to 78-incheslong. Use two 12 foot pipes formodules up to 98-inches long
• 10° to 60° tilt angle
• UPS Shippable in 4 boxes

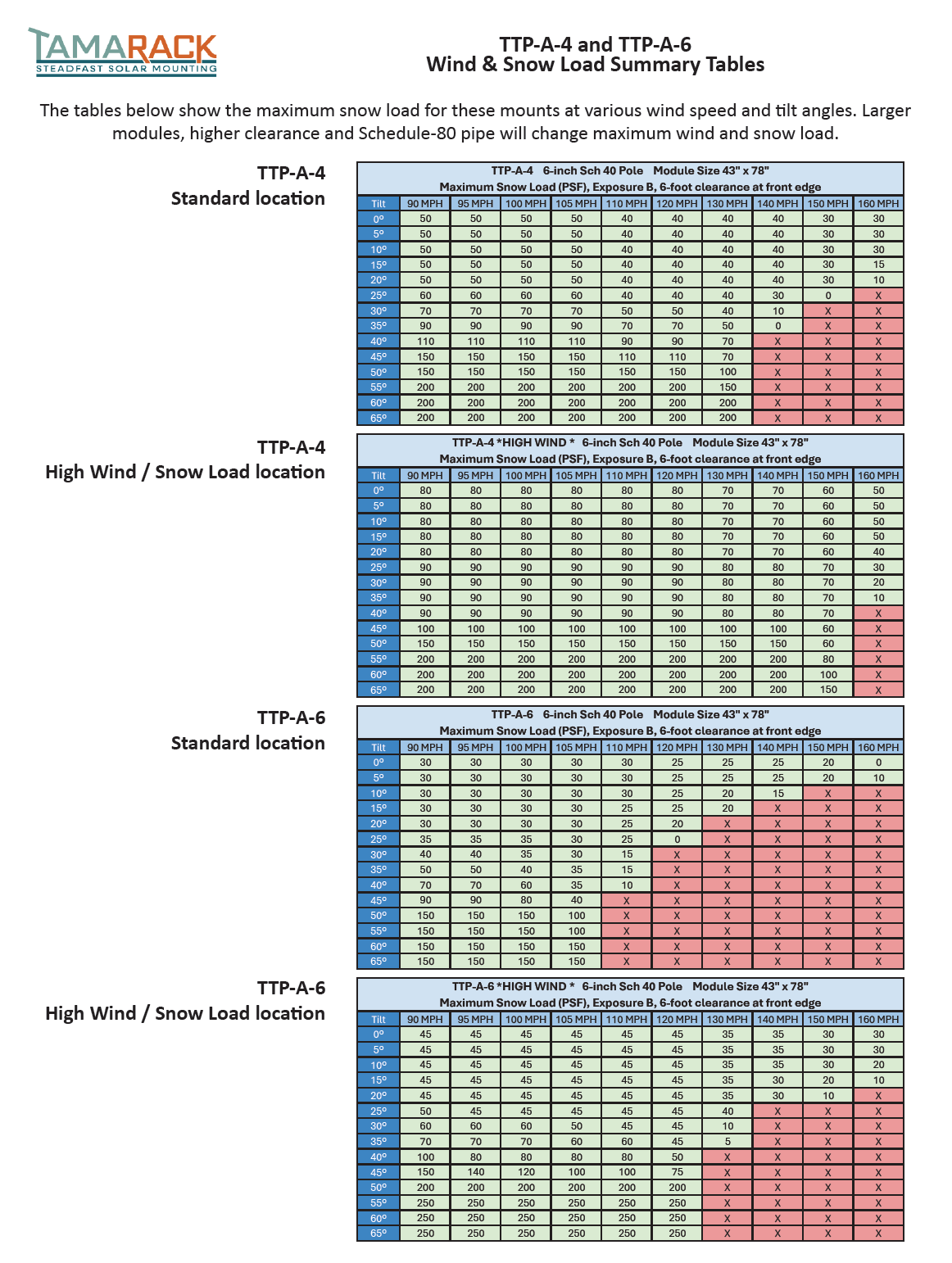

• Engineered for up to 160 mphwind speed and up to 150 psf snow load
• Site specific engineering for permit packages is available for an extra fee

*Deeper module frames can be used by adding 50/50+ mounting clamp sold separately 89907

TTP-6A ships without 2-inch Schedule 40 pipe - 185 lbs.
PIPE KIT-SD10 includes four 2-inch Sch-40 5 foot pipes and 2 couplings. Use with modules up 78-inches long. 78 lbs.
PIPE KIT-SD12 includes four 2-inch Sch-40 6 foot pipes and 2 couplings. Use with modules up 98-inches long. 102 lbs.

Pipe Kits above are shipped in 5-foot or 6-foot sections with couplings so they can shipped by UPSTilt90
