Tamarack

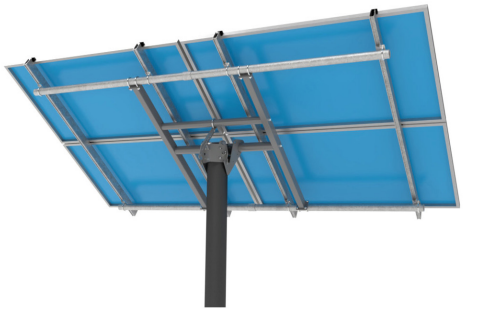

Tamarack Solar 4 Module Pole Top Mount TTP-A-4HW-93

SKU:
TTP-A-4HW-93
SHIPPING:
Estimated Arrival: 10 business days
$1,760.00

Description

Mount 4 modules with a total area of 100 square feet or less on a 6-inch Schedule-40 or Schedule-80 pole

Features:

  • 93-inch rails accommodate 4 modules with widths up to 45.5 inches
  • Mounts on user-supplied 6-inch Schedule-40 or Schedule-80 steel pipe
  • Module clamps fit frames between 30 to 40 mm deep*
  • No complex sizing documents or need to send module data sheets when ordering
  • Heavy-Duty steel structure and Tamarack 3.1 aluminum module mounting rails
  • Module Rails attach to 2-inch Schedule 80 steel pipe. Purchase this pipe locally to save shipping cost or order appropriate length separately. Use two 10-foot pipes for modules up to 78-inches long. Use two 12-foot pipes for modules up to 98-inches long.
  • 10° to 60° tilt angle
  • UPS Shippable in 4 boxes
  • Engineered for up to 160 mph wind speed and up to 200 psf snow load
  • Site specific engineering for permit packages is available for an extra fee

TTP-A-4HW-93 ships without 2-inch Schedule-40 pipe - 166 lbs
PIPE-KIT-HD10 includes four 2-inch Sch-80 5 foot pipes and 2 couplings. Use with modules up 78-inches long. 104 lbs
PIPE-KIT-HD12 includes four 2-inch Sch-80 6 foot pipes and 2 couplings. Use with modules up 98-inches long. 125 lbs
Note: Pipe Kits above are shipped in 5-foot or 6-foot sections with couplings so they can ship via UPS.

*Deeper frames can be used by adding 50/50+ mounting clamps (Item# 89907, sold separately)

Specifications

  • Manufacturer: Tamarack Solar

    Product Line: Top Mount

    Model ID: TTP-A-4HW-93

View AllClose

Warranty Information

Flush Mount (FM) and Ground Mount (GM) products = 25 years & Pole Mounts (TTP-A, UNI-PGRM, UNI-GR, UNI-SP and UNI-SA products) = 10 years
