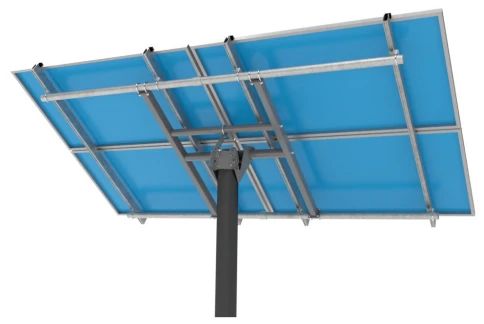

Tamarack Solar 4 Module Pole Top Mount TTP-A-4-93

Mount 4 modules with a total area of 100 square feet or less on a 6-IN Schedule-40 or Schedule-80 pole

Features:

• 93-IN rails accommodate 4 modules with widths up to 45.5 inches
• No complex sizing documents or need to send module data sheets when ordering
• Heavy-Duty steel structure and Tamarack 3.1 aluminum module mounting rails
• 10° to 60° tilt angle
• UPS Shippable (mulitple boxes)
• Module clamps fit frames between 30-40mm deep*
• Mounts on 6-IN Schedule-40 or Schedule-80 vertical steel post (user supplied)**
• Engineered for up to 160 mph wind speed and up to 200 psf snow load depending on horizontal pipe and vertical post size used. See the charts on our website*** to determine appropriate sizes based on your location.
• Site-specific engineering for permit packages is available (extra fee)

Module Rails attach to 2-IN Schedule-40 or Schedule-80** steel pipe (not included). Purchase this pipe locally to save shipping cost or see our PIPE KITS below to order the appropriate pipe size & length. If buying pipe locally, you will need:

• (2) 10-foot Schedule-40 or Schedule 80** pipes for modules up to 78 inches long or
• (2) 12-foot Schedule-40 or Schedule 80** pipes for modules up to 98 inches long

PIPE KITS (UPS Shippable)

STANDARD LOCATIONS**

• TP-PIPEKIT-SD10 - (4) 2-IN Sched-40 5-FT pipes & 2 couplings. Use with modules up 78 inches long. 78 lbs
• TP-PIPEKIT-SD12 - (4) 2-IN Sched-40 6-FT pipes & 2 couplings. Use with modules up 98 inches long. 93 lbs

HIGH WIND / SNOW LOAD LOCATIONS**

• TP-PIPEKIT-HW10 - (4) 2-IN Sched-80 5-FT pipes & 2 couplings. Use with modules up 78 inches long. 107 lbs
• TP-PIPEKIT-HW12 - (4) 2-IN Sched-80 6-FT pipes & 2 couplings. Use with modules up 98 inches long. 118 lbs

* Deeper frames can be used by adding 50/50+ mounting clamps (Item# 89907, sold separately)
** Standard locations use Schedule-40 pipe. High wind/snow load locations use Schedule-80 pipe.
