Tamarack

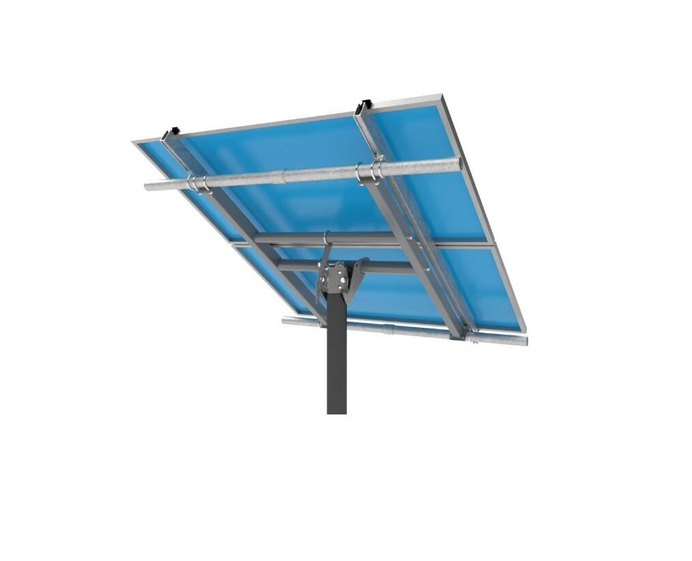

Tamarack Solar 2 Module Pole Top Mount TTP-A-2
- SKU:
- TTP-A-2
- SHIPPING:
- Estimated Arrival: 10 business days
Description
Mount two modules with a total area of 50 square feet or less on a 4-inch Schedule 40 or 80 pole
Features:
- Fits any module up to 41.5 inches wide with frames 30 to 40 mm deep*
- Mounts on user-supplied 4-inch schedule-40 or schedule-80 steel pipe
- TTP-A-2 requires 2 sections of schedule-40 pipe. Purchase locally or order Pipe Kit-SD5
- No complex sizing documents or need to send module data sheets when ordering
- Heavy-Duty Steel structure and Tamarack 3.1 aluminum module mounting rails
- 10° to 60° tilt angle
- UPS Shippable
- Total shipping weight is 135 pounds in 3 boxes
- Engineered for up to 160 mph wind speed and 200 psf snow load.
- Site specific engineering for permit packages is available for an extra fee.
*Deeper frames can be used by adding 50/50+ mounting clamp sold separately 89907
PIPE KIT-SD5 Includes two 2-inch Sch-40 5 foot pipes. Shp wt. 54 lbs.
Specifications
-
Manufacturer: Tamarack Solar
Product Line: Top Mount
Model ID: TTP-A-2
INFO & GUIDE
Warranty Information
Flush Mount (FM) and Ground Mount (GM) products = 25 years
Pole Mounts (TTP-A, UNI-PGRM, UNI-GR, UNI-SP and UNI-SA products) = 10 years
