Silfab

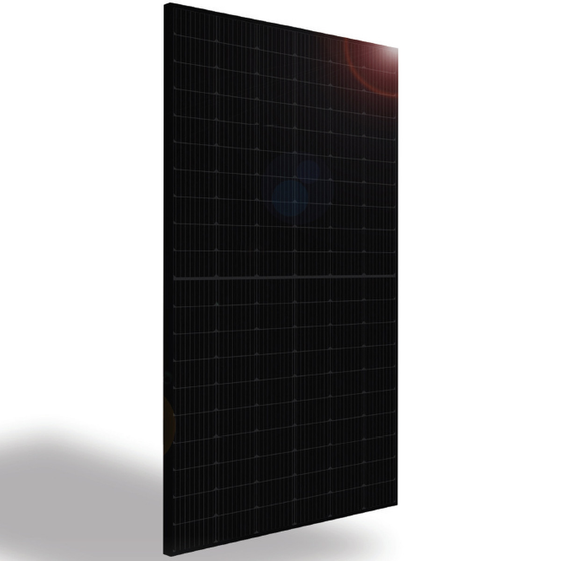

Silfab Solar SIL-370-HC 370w Mono Solar Panel

SKU:
SIL-370-HC
Availability:
***CLOSEOUT POLICY APPLIES*** --Product will not be held for more than 60 days total --No refunds, returns, or other discounts may be applied. Ships LTL Freight only
SHIPPING:
Estimated Arrival: 5-10 business days
Discontinued

Description

Silfab Solar, 370w Monocrystalline Solar Panel, 1000VDC, MC4 Connectors, SIL-370-HC

Silfab 370 W module; 60 cell - mono PERC; 9 busbars; Black/black

Ideal for ground-mount, roof-top and solar tracking installations where maximum power density is preferred.

Features

  • Highlights - Hail impact resistance - 1" at 51.6 mph 3.2 mm high transmittance, tempered glass with DSM antireflective coating High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, fluorine-free PV backsheet 25 year module product workmanship warranty if installer is registered at https://silfabsolar.com/silfab-extended-warranty-application/

Specifications

  • Manufacturer: Silfab Solar
    Product Line: SIL-HC
    Model ID: SIL-370-HC

  • Mechanical Data

    Technology: Monocrystalline (Mono)
    Dimensions:
    69.4 x 40.8 x 1.37 inches
    Weight: 44 lbs
    Maximum Surface Load: 5400 Pa
    Hail Impact Resistance: Ø 25mm at 83 km/h
    Cells: 120 Half cells - Si Mono Perc - 9 Busbar - 83 x 166 mm
    Glass: 3.2 mm High Transmittance, Tempered, DSM Anti-reflective Coating
    Encapsulant: PID - Resistant EVA
    Backsheet: Multi-Layer Polyester - Based
    Frame: Anodized Aluminum
    Junction Box: 3 Diodes - 45V/30A, IP68
    Cables and Connectors: 1350 mm, ø 5.7 mm, MC4 from Staubli
    Product: UL 3730 Certified, IEC 62790 Certified, IP68 rated
    Factory: ISO 9001:2015
    Operating Temperature: -40°C to +85°C

  • Electrical Data

    Module Power (Pmax): 370 Wp
    Maximum Power Voltage (Vpmax): 34.95 Volts
    Maximum Power Current (Ipmax): 10.60 Amps
    Open Circuit Voltage (Voc): 41.75 Volts
    Short Circuit Current (Isc): 11.25 Amps
    Module Efficiency: 20.2%
    Maximum System Voltage: 1000 VDC
    Series Fuse Rating: 20 Amps
    Power Tolerance: -0/+10 Wp

INFO & GUIDE

pdf.pngSilfab Solar SLG370M Specs
pdf.pngSilfab Solar SLG370M Installation Guide
pdf.pngSilfab Solar SLG370M Brochure
pdf.pngSilfab Solar SLG370M Warranty
View AllClose

Warranty Information

Warranty: 12 Year Product Warranty Performance Warranty: 30 years linear 82.6% at end of 30th year
View AllClose
