Hanwha

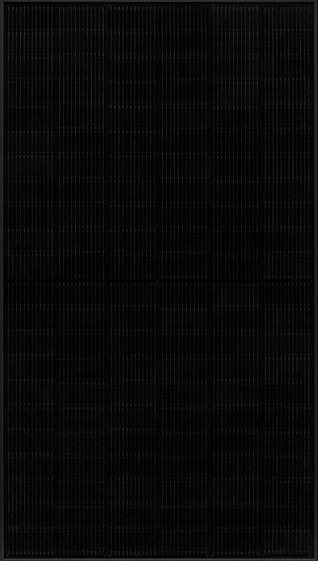

Hanwha Q Cells Q.PEAK DUO BLK ML G10+ 405W Mono Solar Panel

SKU:
Q.PEAK DUO BLK ML G10+ 405
Availability:
Ships LTL Freight
SHIPPING:
Estimated Arrival: 5-10 business days
Unavailable

Description

Hanwha Q CELLS Q.PEAKDUO-BLK-ML-G10+405 Watt 132 1/2 Cells Bifacial Double Glass Monocrystalline 32mm Black Frame Solar Panel

This high-efficiency module is backed by Q Cells trademark Q.ANTUM cell technology, which is what powers their solar panels to produce a higher energy yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.6%.

Features

  • Technology - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.9%. Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.
  • Performance - Optimal yields, whatever the weather with excellent low-light and temperature behavior. Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.
  • Reliable - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa. Inclusive 12-year product warranty and 25-year linear performance guarantee.

Specifications

  • Manufacturer: Hanwha Q Cells
    Product Line: Q.PEAK DUO XL-G10.3/BFG
    Model ID: Q.PEAK DUO XL-G10.3/BFG 480W

  • Mechanical Data

    Technology: Monocrystalline (Mono)
    Dimensions:
    74.0 x 41.1 x 1.26 inches
    Weight: 48.5 lbs
    Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
    Back Cover: Composite film
    Frame: Black Anodized Aluminum
    Cell: 6 × 26 monocrystalline Q.ANTUM solar half cells
    Connector: Staubli MC4; IP68

  • Electrical Data

    Power at MPP²: 405 Watts
    Short Circuit Current (Isc): 11.19 Amps
    Open Circuit Voltage (Voc): 45.09 Volts
    Current at MPP (Impp): 10.70 Amps
    Voltage at MPP (Vmpp): 37.85 Volts
    Efficiency Nominal Power (╖): ≥ 20.6%

View AllClose

Warranty Information

12 Year Product Warranty Performance Guarantee 25 Year Linear Performance Warranty
