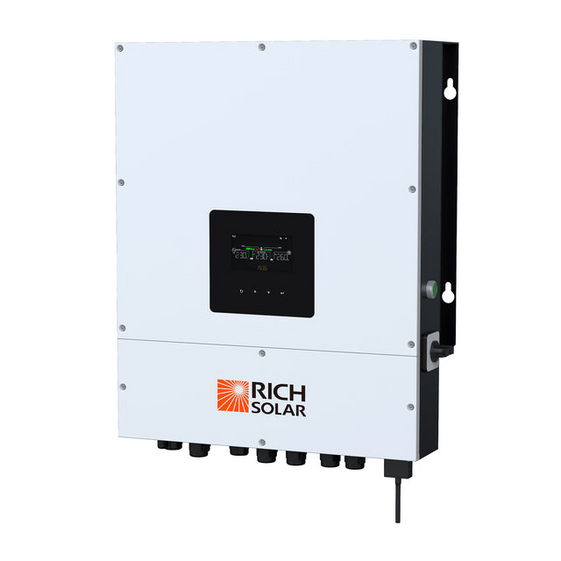

Rich Solar RS-H6048K NOVA 8K | 7500 Watt (7.5kW) 48V Split Phase Hybrid Inverter | 7500W PV Input, 6000W Continuous Output 120/240V | Premium 7500W 48V Hybrid Inverter for Home, ADUs, Off-Grid, On-Grid | UL Certified

SKU:
RS-H6048K
UPC:
774533742996
MSRP: $1,999.99
$1,599.99
— You save $400.00

Everything you need to go solar, all in one kit.

Spec out a full parts list for your solar project. We'll help design a complete system to meet your project goals.

Design My Complete Kit
Read Our 1000+ Google Reviews
Support

Questions? We’re Here to Help.

Get timely, human assistance from people with real-world experience. No question is too large or too small - reach out to us for guidance.

We're open M-F, 6am-4pm PST. After-hours messages get a response within 1 business day.

Call us
Email us

Description



Features

  • IP65 waterproof and dustproof making the inverter suitable for various working conditions.
  • Configurable color with the built-in RGB LED bar.
  • Built-in Wi-Fi for mobile monitoring (APP is required).
  • Built-in alternative port for generator and emergent load.
  • Optional external CT sensor to guarantee 100% self-consumption.
  • Programmable supply priority for PV, Battery or Grid.
  • Built-in communication port for BMS (RS485).
  • User-adjustable charging current and voltage.
  • Parallel operation up to 6 units.



Specifications

Manufacturer: Rich Solar
Product Line: Inverter
Model ID: RS-H6048K

General

  • Maximum PV Input Power: 7500W
  • Rated Output Power: 6000VA/6000W
  • Parallel Capability: Yes, 6 units

Input

  • Maximum DC Voltage: 600VDC
  • Start-up Voltage/Initial Feeding Voltage: 120VDC/160VDC
  • MPPT Voltage Range: 120VDC-550VDC
  • Frequency Range: 50Hz/60Hz (Auto detection)

Output

  • Output Voltage Waveform: Pure Sine Wave
  • Nominal Output Voltage: 120VAC (P-N)/208VAC (P-P)/240VAC (P-P)
  • Output Voltage Range: 105.5–132VAC per phase
  • Nominal Output Current: 25A per phase

Battery

  • Battery Voltage: 40–62VDC
  • Maximum Charging Current: 120A
  • Efficient (DC to AC): 91%

Operating Environment

  • Operating Temperature Range: -13°F to 140°F (>113°F derating)

Physical

  • Dimension: 8.5x20.3x27.6in/215.5x515x700mm
  • Net Weight: 90.4lb/41kg
