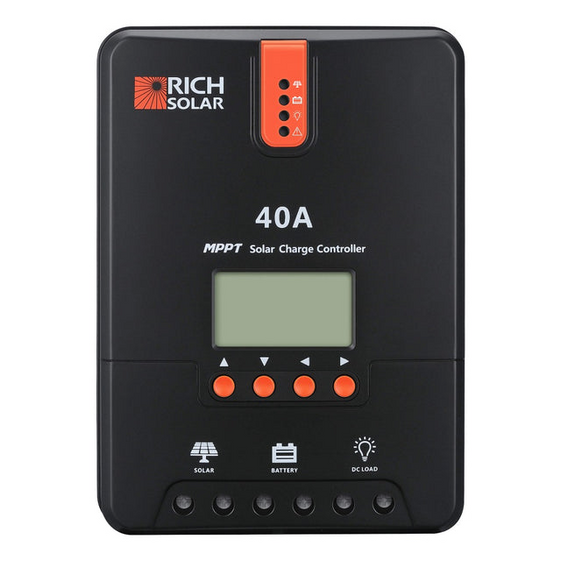

Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller

SKU:
RS-MPPT40
UPC:
650380716628
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
  • Rich Solar RS-MPPT40 40 Amp MPPT Solar Charge Controller (RS-MPPT40)
MSRP: $159.99
$127.99
— You save $32.00

Description



Features

  • Automatically detects 12V or 24V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port to communicate with BT-1 Bluetooth module.



Specifications

Manufacturer: Rich Solar
Product Line: Solar Charge Controller
Model ID: RS-MPPT40

  • Rated Battery Current: 40A
  • Rated Load Current: 20A
  • Max. PV Input Short Current: 50A
  • Max. Battery Voltage: 32V
  • Max Solar Input Voltage: 100VDC
  • Charge Circuit Voltage Drop: ≤0.26V
  • Discharge Circuit Voltage Drop: ≤0.15V
  • Working Temperature: -31°F to +113°F
  • Max Terminal Size: 8AWG
  • Rated Load Current: 10% to 90% NC
  • Overall Dimensions: 9.37 x 6.81 x 2.85 in
  • Net Weight: 4.41 lb





Available now at SolarTown – trusted distributor.

INFO & GUIDE

pdf.pngSpecSheet
pdf.pngManual
View AllClose

Warranty Information

Solar Panels Rigid Solar Panels 25-Year Power Output Warranty 10-Year Workmanship Warranty ------ Portable Solar Panels 25-Year Power Output Warranty 5-Year Workmanship Warranty 2-Year Warranty for Controller on Kits ------ Flexible Panels 1-Year Warranty ------ Batteries ALPHA LITE Series *5-Year Warranty ------ ALPHA Series *5-Year Warranty ------ ALPHA PRO Series *10-Year Warranty ------ LiFePO4 Battery Bank (Black) *5-Year Warranty ------ Inverters Grid-Tie Inverters 10-Year Warranty ------ Pure Sine Wave Inverters 2-Year Warranty ------ Hybrid Inverters 3-Year Warranty ------ Controllers MPPT Controllers 2-Year Warranty ------ PWM Controllers 1-Year Warranty
