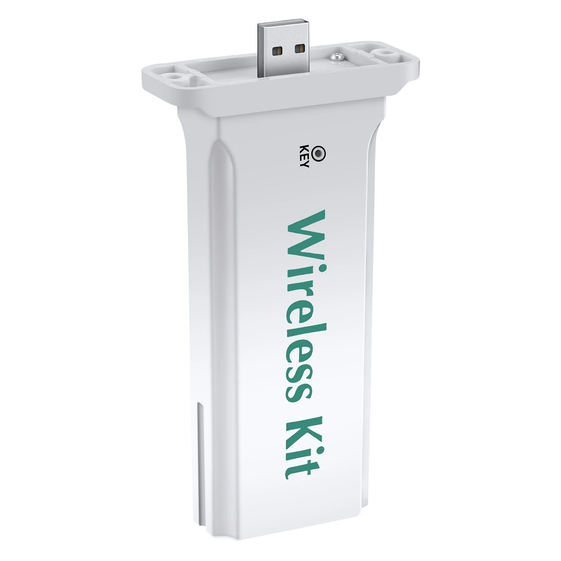

Rich Solar USB WiFi Monitoring Stick | Only for NOVA 3K

Rich Solar USB WiFi Monitoring Stick | Only for NOVA 3K | Plug and Play

SKU:

RS-H3048WIFI

UPC:

650380716475

SHIPPING:

FREE Shipping! (Estimated Arrival: 5-10 business days)

Description
Warranty Information

Description

USB Wifi Monitoring Device - works with RICH SOLAR off-grid inverter model: RS-H3048 or H3000). Wifi-F is a plug-and-play monitoring device to help monitor the status of the PV system, this device is installed on inverter or controller for uploading and receiving data from the server.

Specifications

General Data

Dimensions(L/W/H): 135/79/29mm
Weight: 63g
Manual language: English

Wireless Parameters

Wireless type: WiFi
Wireless standard: 802.11 b/g/n
Transmit power: 802.11b: +20dBm(Max.); 802.11g: +18dBm(Max.); 802.11n: +15dBm(Max.)
Receiver sensitivity: 802.11b: -89dBm(Max.); 802.11g: -81dBm(Max.); 802.11n: -71dBm(Max.)

Hardware Parameters

Data interface: UART: 9600bps; Ethernet: 100Mbps
Operating voltage: 5V (+/-15%)
Operating current: 1A
Operating temperature: -20°C~+65°C
Storage temperature: -40°C~+70°C
Network type: AP (Access Point); station mode (with soft AP)
Security mechanisms: WEP / WPA-PSK / WPA2-PSK
Encryption: WEP64 / WEP128 / TKIP / AES

INFO & GUIDE

Application on Parameters:

Supported servers: ShineServer
Inverter communication: USB A-type
Sever Communication: WiFi via router (Modbus TCP protocol)
Supported Routers: Wireless router (Include 3G router)
User Configuration Interface: Wireless web server (Internet Browser)
Max. Communication Range: 100m
Data transmission interval: 5 minutes
Default Server URL: server.pvbutler.com
