Rich Solar

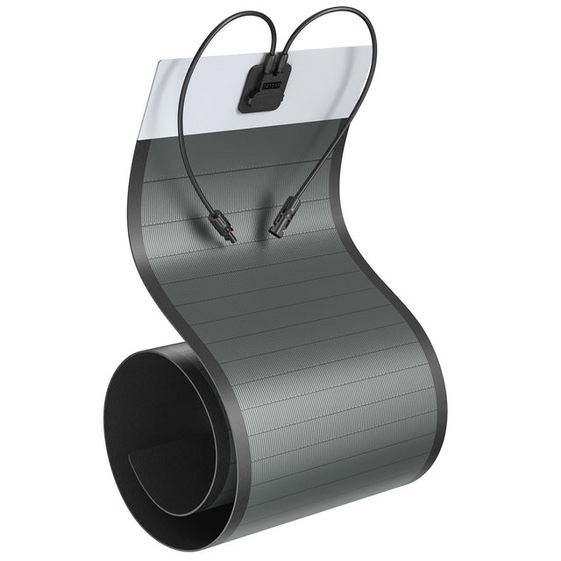

Rich Solar MEGA 80 FLEX | 80 Watt CIGS Flexible Solar Panel | Premium 12V Flexible Panel for Vans, RVs, Boats
- SKU:
- RS-F80C
- UPC:
- 650380717069
Description
This solar panel from Rich Solar offers 80 watts of power to your home and is designed for both indoor and outdoor use. Built with CIGS technology, it has good efficiency in low light conditions, is lightweight, and is great for use in a range of applications.
Features
Integrates With Roofing Surface
- Easy to install with an adhesive mounting system
- No mounting hardware needed
- No roof penetration
- No wind load
- Low profile
Flexible Solar Panels
- Fits many roof types (Marine, RV, Vans, Residential, etc.)
- Conforms to the shape of your roof
- Durable and weather-resistant
Adhesive Mounting System
- Special rooftop adhesive materials
- No screws needed
- Less wear and tear on your roof
- Theft-resistant
Lightweight System
- Flexible installation configurations
- Minimize roof stress
- Aerodynamic
High Efficiency
- CIGS Technology
- High absorption rate
- Performs in all light conditions
- Shade tolerant
Specifications
-
Manufacturer: Rich Solar
Product Line: Solar Panel
Model ID: RS-F80C -
Maximum Power(Pmax): 80W
- Maximum Power Voltage(Vmp): 19.6V
- Maximum Power Current(Imp): 4.08A
- Open Circuit Voltage(Voc): 23.8V
- Short Circuit Current(Isc): 4.32A
- Maximum System Voltage(Vmax): 1000VDC
- Max Series Fuse Rating: 10A
- Weight: 3.8 lbs
- Dimensions: 67.3 x 13.8 in
Built-in Components
- 80 Watt Flexible Solar Panel
- CIGS Cell technology
- Panel Leads (Pair): 12AWG, 2FT each
- IP67 Rated waterproof junction box
- IP67 Rated waterproof connectors
