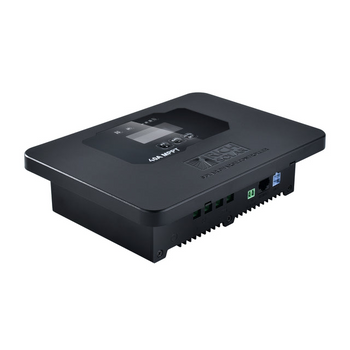

Rich Solar BRAVO FLUSH 40 | 40 Amp Flush Mount MPPT Solar Charge Controller | Premium 40A 12V/24V PWM Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
- SKU:
- RS-MPPT40FM
- UPC:
- 650380715836
Description
Features
- PV open circuit voltage up to 100V.
- The latest Maximum Power Point Tracking (MPPT) algorithm.
- Unique multiple peaks detected technology for Maximum Power Point Tracking.
- MPPT tracking efficiency above 99.5%.
- Wider MPP operating voltage range.
- Common negative grounding connection.
- Suit for most rechargeable batteries, up to 9 battery types preset plus custom setting.
- Extensive internal electronics in-circuit protection.
- Reliable operating safety protection: overcharging or undercharging protection, short circuit protection, reverse polarity protection, thermal protection.
- Automatically detect 12V or 24V DC system voltages.
- Unique and concise LED bar to indicate the solar statues and battery charging condition.
- Large and informative display interface to show Solar parameter, battery charging parameter, battery type, battery temperature, custom presetting and faulty codes, etc.
- Provides plug-in remote digital display meter (Optional).
- Provides external battery temperature sensor (Optional).
- Splash proof IP43.
- Rubber mask for connecting terminal’s protection.
- Conformal coating for internal boards.
- Designed according to UL1741, EN/IEC 62109-1; EMI standard: EN61000-6-
- 1/EN61000-6-3 and FCC standard: 47 CFR Part 15, Subpart B.
Specifications
-
Manufacturer: Rich Solar
Product Line: Charge Controller
Model ID: RS-MPPT40FM
| ATTRIBUTE | VALUE |
| Max. PV Open Circuit Voltage: | 100 VDC |
| Max. Normal Input PV Voltage: | 92 VDC |
| Max. PV Input Current: | 40 AMP |
| Max. PV Short Circuit Current: | 45 AMP |
| Max. Conversion Efficiency: | 98% |
| Min. Tracking Efficiency: |
99.5% |
| Nominal PV Power: | 600W@12V/1200W@24V |
| Min. Battery Start Charging Voltage: | 5 VDC |
| Soft Start Charging Voltage: | 5~10±2 |
| Soft Start Charging Current: | 20 AMP |
| Max. Bulk Charge: | 40 AMP |
| Controller Material: | Plastic, PC |
| Mounting: | Surface Mounting |
| IP Grade: | IP43 |
| Net Weight: | 1.87 lb |
| Operating Temperature: | -13 ~ 122 ℉ |
| Storage Temperature: | -40 ~ 185 ℉ |
| Operating Humidity Range: | 0-85% RH |
