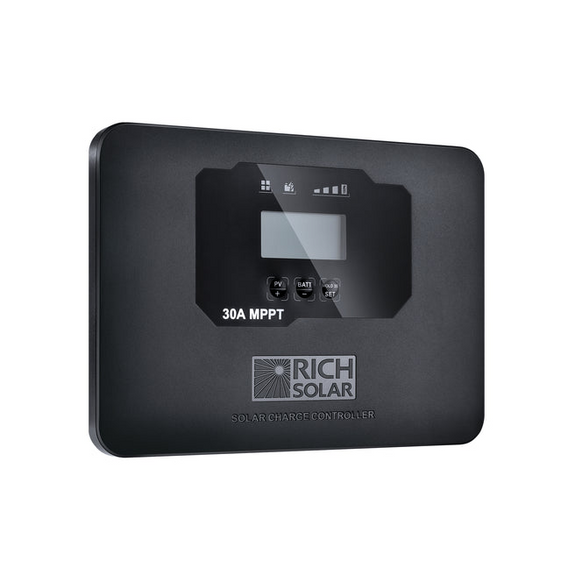

Rich Solar BRAVO FLUSH 30 | 30 Amp Flush Mount MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
- SKU:
- RS-MPPT30FM
- UPC:
- 650380715843
Description
Features
- PV open circuit voltage up to 100V.
- The latest Maximum Power Point Tracking (MPPT) algorithm.
- Unique multiple peaks detected technology for Maximum Power Point Tracking.
- MPPT tracking efficiency above 99.5%.
- Wider MPP operating voltage range.
- Common negative grounding connection.
- Suit for most rechargeable batteries, up to 9 battery types preset plus custom setting.
- Extensive internal electronics in-circuit protection.
- Reliable operating safety protection: overcharging or undercharging protection, short circuit protection, reverse polarity protection, and thermal protection.
- Automatically detect 12V or 24V DC system voltages.
- Unique and concise LED bar to indicate the solar status and battery charging condition.
- Large and informative display interface to show solar parameters, battery charging parameters, battery type, battery temperature, custom presetting and faulty codes, etc.
- Provides plug-in remote digital display meter (Optional).
- Provides external battery temperature sensor (Optional).
- Splash-proof IP43.
- Rubber mask for connecting terminal’s protection.
- Conformal coating for internal boards.
- Designed according to UL1741, EN/IEC 62109-1; EMI standard: EN61000-6-
- 1/EN61000-6-3 and FCC standard: 47 CFR Part 15, Subpart B.
Specifications
-
Manufacturer: Rich Solar
Product Line: Charge Controller
Model ID: RS-MPPT30FM
| ATTRIBUTE | VALUE |
| Max. PV Open Circuit Voltage: | 100 VDC |
| Max. Normal Input PV Voltage: | 92 VDC |
| Max. PV Input Current: | 30 AMP |
| Max. PV Short Circuit Current: | 35 AMP |
| Max. Conversion Efficiency: | 98% |
| Min. Tracking Efficiency: |
99.5% |
| Nominal PV Power: | 500W@12V/1000W@24V |
| Min. Battery Start Charging Voltage: | 5 VDC |
| Soft Start Charging Voltage: | 5~10±2 |
| Soft Start Charging Current: | 15 AMP |
| Max. Bulk Charge: | 30 AMP |
| Controller Material: | Plastic, PC |
| Mounting: | Surface Mounting |
| IP Grade: | IP43 |
| Net Weight: | 1.87 lb |
| Operating Temperature: | -13 ~ 122 ℉ |
| Storage Temperature: | -40 ~ 185 ℉ |
| Operating Humidity Range: | 0-85% RH |
INFO & GUIDE
Warranty Information
Rigid Solar Panels
25-Year Power Output Warranty
10-Year Workmanship Warranty
Portable Solar Panels
25-Year Power Output Warranty
5-Year Workmanship Warranty
2-Year Warranty for Controller on Kits
Flexible Panels
1-Year Warranty
Batteries
ALPHA LITE Series
*5-Year Warranty
ALPHA Series
*5-Year Warranty
ALPHA PRO Series
*10-Year Warranty
LiFePO4 Battery Bank (Black)
*5-Year Warranty
Inverters
Grid-Tie Inverters
10-Year Warranty
Pure Sine Wave Inverters
2-Year Warranty
Hybrid Inverters
3-Year Warranty
Controllers
MPPT Controllers
2-Year Warranty
PWM Controllers
1-Year Warranty
View AllClose
Related Products
Rich Solar
MSRP:
$249.99
$199.99
Features
PV open circuit voltage up to 100V.
The latest Maximum Power Point Tracking (MPPT) algorithm.
Unique multiple peaks detected technology for Maximum Power Point Tracking...
Rich Solar
MSRP:
$79.99
$63.99

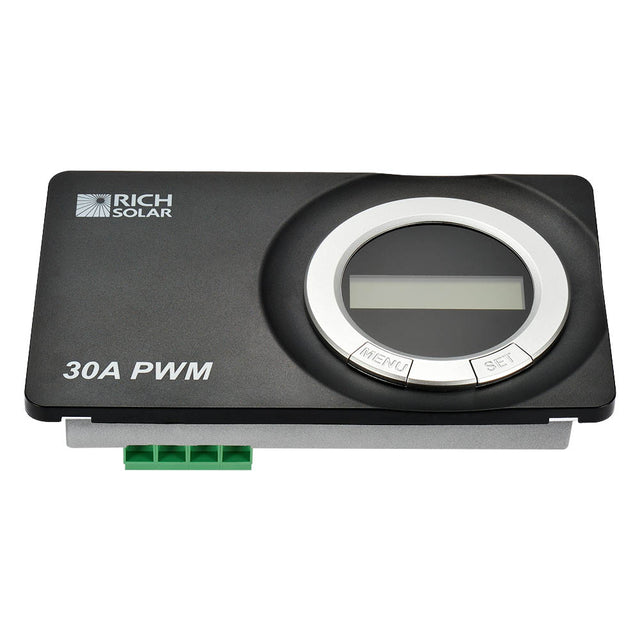

The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar...
