Rich Solar

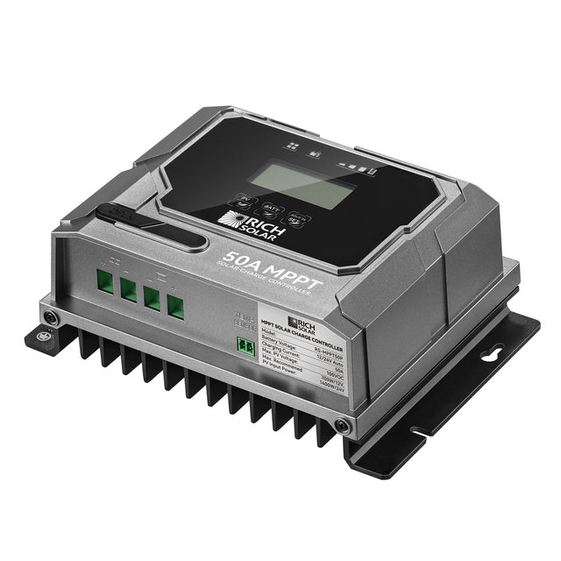

Rich Solar BRAVO 50 | 50 Amp MPPT Solar Charge Controller | Premier 50A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025
- SKU:
- RS-MPPT50P
- UPC:
- 650380715676
Description
Features
- True MPPT, the Latest Algorithm
- Tracking Efficiency Above 99.5%
- Charge Conversion Efficiency as high as 98%
- 12V / 24V DC System Self-Adaptation
- Reverse Discharge Protection
- Targeted for Accurate CUSTOM Setting
- Overvoltage Protection
- Common Negative Connection
- Charging Data Storage
- Conformal Coating For Inside Board
- Designed According to UL1741, EN/IEC 62109 1
- In-house Design And Manufacture
- Extensive Internal Electronics In-Circuit Protections And Safety Protections
- Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
- Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
Specifications
-
Manufacturer: Rich Solar
Product Line: Controller
Model ID: RS-MPPT50P
UNIQUE PERFORMANCE
- Splash Proof IP43
- 8+1 Battery Type Option
- Rubber Mask For Connectors Protection
- Unique Charge Management Technology For Safe And Optimized Charge
- Unique Multiple Peaks Detected Technology For Maximum PowerPoint Tracking
- Housing Enclosure In Patent Application
- Large and Informative LCD Display To Show Solar, Battery and Setting Parameters
- Unique Fully Discharged Battery Recovery Or Re-Start For Lead Acid or Lithium Battery
- Unique and Concise LED Bar / Transparent Windows Indications In Patent Application
System Nominal Voltage: 12/24V Auto
Max PV Open Circuit Voltage: 100VOC
Charging Technology: MPPT
Max PV Charging Current: 50A
Max. Recommended PV Input Power 700 Watt (12V) / 1400 Watt (24V)
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.40kg / 3.09lb
Dimensions (L*W*H): 195*140*74 mm / 7.7*5.5*2.9 in
