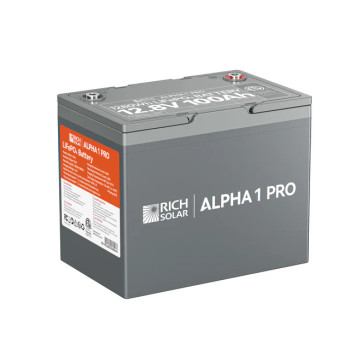

Rich Solar ALPHA 1 PRO | 12V 100Ah LiFePO4 Battery | Premium 12V Lithium Battery for Off-Grid, RVs, Boats | 7,000 Lifetime Cycles | 10 Year Warranty | UL1973 Certified

BATTERY
Cell Type: LiFePO4 Battery

Nominal Voltage: 12.8V

Nominal Capacity: 100Ah

Nominal Energy: 1280Wh

Cycle Life: 7000 cycles

Maximum Expansion (Parallel & Series): 4P4S

BMS
BMS: 100A

Maximum Charging Current: 100A

Maximum Continuous Discharge Current: 100A

Maximum Discharge Current 10 Seconds: 110A

CHARGE
Charge Method: CC/CV

Charge Voltage: 14.4V ± 0.2V

Recommend Charge Current: 50A (0.2C)

TEMPERATURE
Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

SELF-HEATING
External Power Draw: 100W

Internal Heating Starts: < 41℉ (5℃)

Internal Heating Stops: > 50℉ (10℃)

OTHERS
Net Battery Weight: 24.0lb

Size(L*W*H): 10.2x6.6x8.3in (Group 24 size)

Housing Material: ABS (Flame Retardant Plastic)

Protection Class: IP65

Warranty: 10 Years

Certifications: UL1973, FCC, UN38.3, ETL
