Description
Features
- Automatically detects 12V or 24V DC system voltages.
- Compatible with various deep cycle battery options:Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port to communicate with BT-1 Bluetooth module.
- Advanced maximum power point tracking algorithm can quickly locate the best working point in the l-V curve to significantly improve the system’s energy efficiency.
Specifications
-

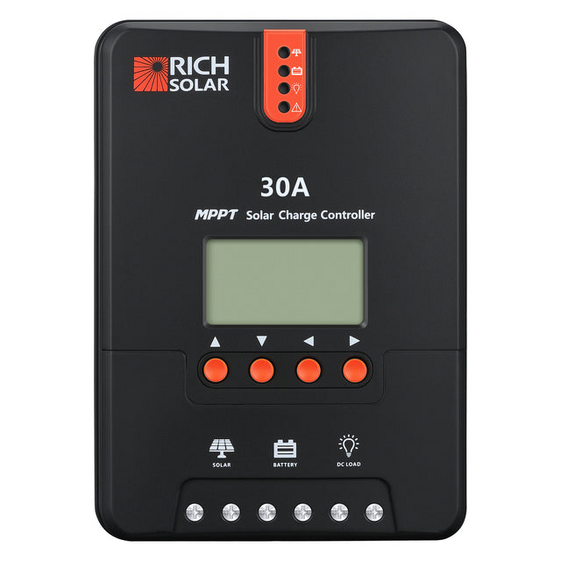

Manufacturer: Rich Solar
Product Line: Charge Controller
Model ID: RS-MPPT30
controller Info
Nominal System Voltage: 12V/24V Auto
Rated Charging Current: 30A
Rated Load Current: 20A
Max Solar Input Voltage: 100V(25?), 90V(-25?)
Discharge Circuit Voltage drop: = 0.15V
Net Weight: 4.41lbs
Overall Dimension: 9.37 x 6.81 x 2.85in
Battery Wire Diameter: 6mm²
Load Wire Diameter: 5mm²
No-load Loss: 0.7W to 1.2W
Battery Voltage: 9V to 35V
Max. Power Point Voltage Range: Battery Voltage +2V to 75V
Max. Photovoltaic System Input Power: 400W/12V, 800W/24V
Conversion Efficiency: =98%
MPPT Tracking Efficiency: >99%
Temperature Compensation Factor: -3mv//2V Default
Operating Temperature: -35°C to +45°C
Protection Degree: IP32
Communication Method: RS232
Altitude: =3000m
Max. Capacitive Load Capacity: 1000uF
