Renogy

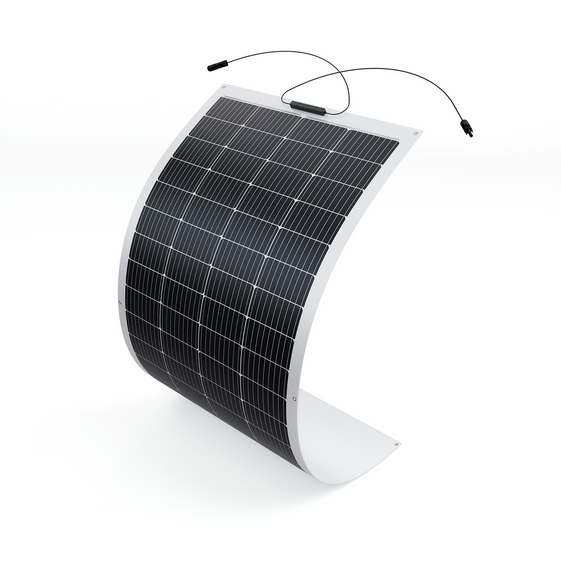

Renogy 200 Watt 12 Volt Flexible Monocrystalline Solar Panel
- SKU:
- RSP200DB-72-US-Main
- SHIPPING:
- Estimated Arrival: 5-10 business days
Description
Features
Empowering Your Off-Grid Life
With an average daily electricity output of 1000Wh (based on 5 hours of direct sunlight), the Renogy 200W Flexible Mono Solar Panel ensures reliable and sustainable power for off-grid living, maintaining over 80% output efficiency even after 25 years of use.
Reflect sunlight back into the solar cell and achieve a better conversion rate of 22%.
ETFE surface and 9 bus-bars cells help enhance light transmittance and improve the conductivity of the solar panel.
Higher wattage output by reducing internal resistance. Better resistance to hotspot effect. Consistent solar conversion during accidental shading.
Flexible for Different Surfaces
Renogy 200W flexible panel is bendable up to 240° and weighs 50% lighter than rigid panels, making it easy to carry and install. Furthermore, an extra composite material layer is embedded inside for increased durability and flexibility.
Built to Endure Harsh Weather
No matter how bad the weather gets, you can always confidently venture anywhere with the companionship of Renogy 200W flexible solar panel.
Specifications
-
Manufacturer: Renogy
Product Line: Panel
Model ID: RSP200DB-72-US
BUILT-IN COMPONENTS
- Output Cables: 12 AWG (2.3 ft)
- Cell Type: Monocrystalline（6.5x3.3）
- Number of Cells: 72（18x4）
- Junction Box: IP68
- Solar Connectors: IP67
SPECIFICATIONS
- Maximum Power at STC: 200W
- Module Efficiency: 16.7%
- Optimum Operating Voltage (Vmp): 20.1V
- Open-Circuit Voltage (Voc): 23.9V
- Optimum Operating Current (Imp): 10.02A
- Short Circuit Current: 10.74A
- Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)
- Maximum Series Fuse Rating: 15A
- Maximum System Voltage: 600V DC
- Certifications: CE，ISO9001
- Weight: 4.9 kg / 10.8 lbs
- Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
- Material and workmanship warranty: 5 years
- Performance Warranty: 5 year 90% output warranty
INFO & GUIDE
MANUFACTURER'S WARRANTY
The product comes with a 5-year warranty.Warranty Information
MANUFACTURER'S WARRANTY:
The product comes with a 5-year warranty.
