Description
Solaredge Power Optimizer 500W/125V MUST BE PURCHASED in system level ratios with qualifying SolarEdge inverters (-USMNBE78, -USSKBEZ8) - ratio will vary, but is determined by PV array size and inverter watt class within recommended DC to AC limits (typically 1.5x or less)
This product is supplied with MC4 connectors
- Specifically designed to work with SolarEdge residential inverters
- Detects abnormal PV connector behavior, preventing potential safety issues
- Module-level voltage shutdown for installer and firefighter safety
- Superior efficiency (99.5%)
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
- Faster installations with simplified wire management and easy assembly using a single bolt
- Flexible system design for maximum space utilization
- Compatible with bifacial PV modules
- Meets NEC requirements for arc fault protection (AFCI) and Photovoltaic Rapid Shutdown System (PVRSS)

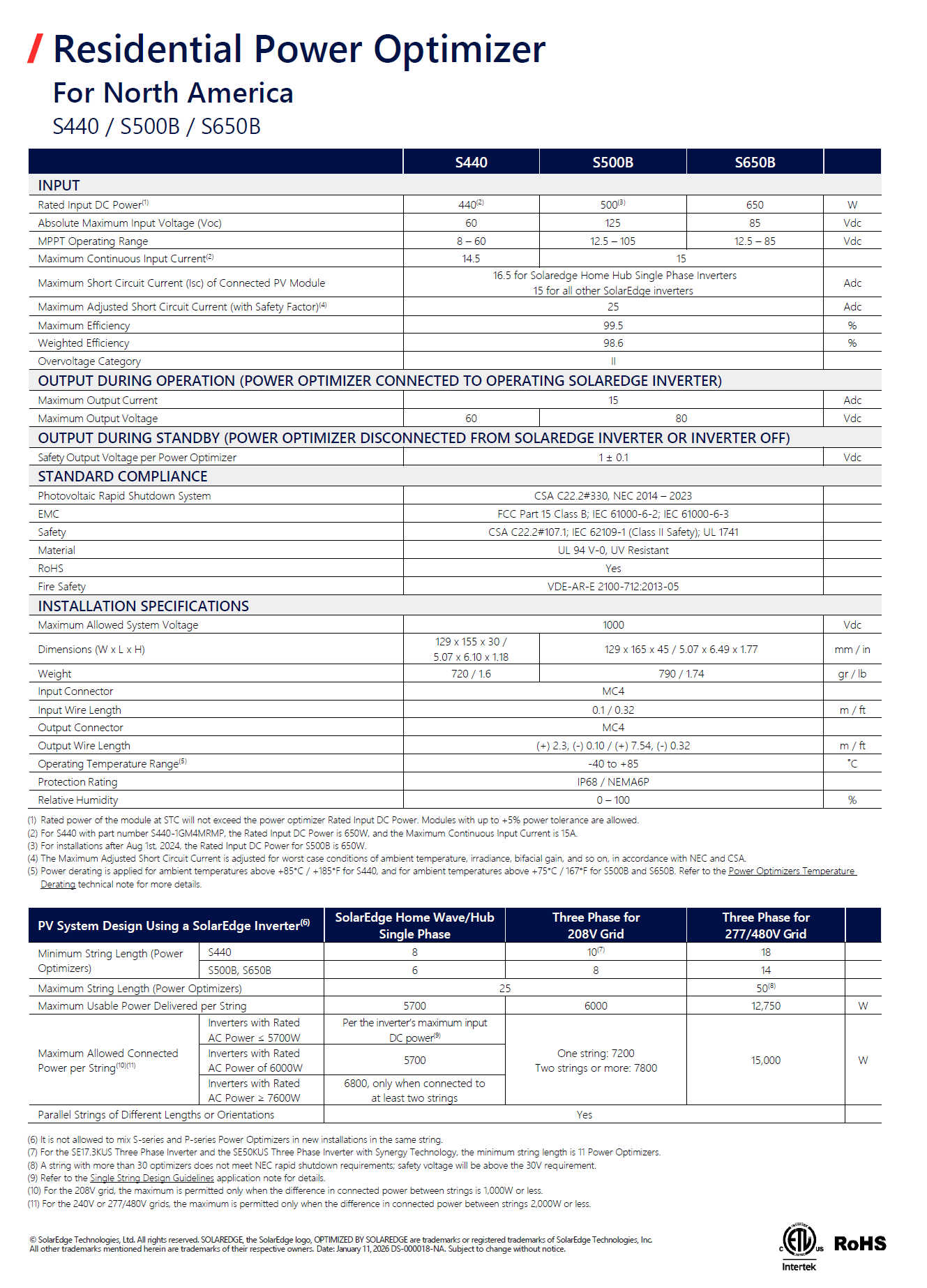

Specifications
Manufacturer: SolarEdge
Product Line: Optimizer

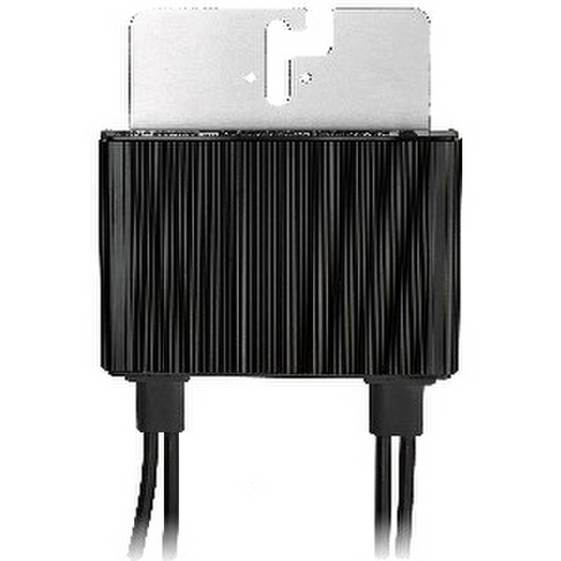

Model ID: SE-S500B-1GM4MBM
Certifications and Safety Ratings: CSA C22.2#330, NEC 2014 – 2023, FCC Part 15 Class B; IEC 61000-6-2; IEC 61000-6-3, CSA C22.2#107.1; IEC 62109-1 (Class II Safety); UL 1741, UL 94 V-0, UV Resistant, VDE-AR-E 2100-712:2013-05
