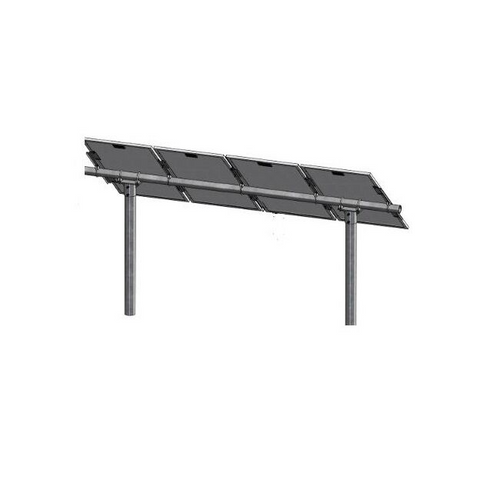

Tamarack Solar UNI-PGRM/4P2-47 Portrait Pole Mount for (4) modules 72-IN - 96-IN long, 2 posts

Tamarack Solar Portrait Pole Mount for (4) modules 72-IN - 96-IN long, 2 posts, UNI-PGRM/4P2-47

Features

• Mount 4 solar modules with a total area of 100 SQFT and a frame thickness between 1.18-IN and 2.0-IN
• Simple one-person installation & adjustment
• Ships via UPS
• Tilt angle from 10° to 60°, per engineering (0° to 85° possible)
• Suitable for wind speed up to 150 MPH and snow load up to 100 PSF with two 4-IN poles
• Maximum post height of 6-FT above ground
• Some wind speeds / snow loads require an additional vertical pole and/or Sch-80 pipe.
• The number of vertical posts required depends on tilt angle, and maximum wind and snow load. See table below to determine pipe requirements. See engineering memo for more detailed specs, pier diameter and depth. Depths range from 5 to 10 feet with diameters of 18-IN or 24-IN.
• 3-IN horizontal beam must be a minimum of 8-IN wider than 4-times the solar module width.
