Description

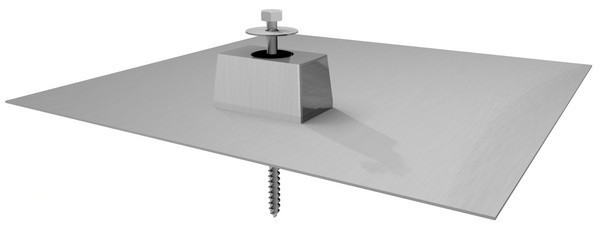

QuickMount, Flashing, Classic Composition Mount, 12" X 12", with Lag Bolt, Mill Finish, QBLOCK, Qty. 1, QMSC-LAG-A-12
The Classic Comp, the industry's best-selling solar panel mount for rooftop solar installations of PV and solar water heating systems, uses our patented QBlock Elevated Water Seal technology to ensure a long, watertight life on composition/asphalt shingle roofs. The Classic Comp was also designed to install fast, with just a single bolt. It is backed by solid engineering and certified for strength and waterproofing by the ICC-ES (ICC-ESR-2835). The Classic Composition Mount is the most universally code-compliant mount available for composition/asphalt shingle roofs
Features
- Highlights - Stainless steel hardware (included). 20-year warranty; 50-year expected life. Works with all leading racks. Won't void roof manufacturer's warranty. Approved for use by leading roof manufacturers. Meets or exceeds roofing industry best practices. 2554 lbs. average ultimate pullout (Douglas fir); 2203 lbs. average ultimate shear. Available through leading distributors. ICC-ES certified. One bolt installation. No shingle cutting. 100% IBC compliant. Patent numbers 7,762,027 & 7,895,808. Made in USA.
Specifications
-
Manufacturer: Quick Mount PV
Product Line: QMSC Series
Model ID: QMSC-LAG-A-12 -
Mechanical Data
Technology: Composition Mount
Dimensions:
12.00 x 1.29 x 12.00 inches
Weight: 0.96 lbs
Finish: Mill
Includes: Lag Bolt
